TUV DC Solar Cable 6mm2 XLPE Insulation 100m Roll

Name: TUV DC Solar Cable 6mm2 XLPE Insulation 100m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6mm2 DC Solar Cable, Single Core TUV DC Solar Cable, Dual Wall Insulation Solar PV Cable


Product Name:	TUV DC Solar Cable 6mm2	Insulation:	XLPO/XLPE
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	TUV DC Solar Cable 6mm2
Insulation:	XLPO/XLPE
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

TUV DC Solar Cable 6mm2 XLPE Insulation 100m Roll

TUV DC Solar Cable 6mm² - High Temperature Resistant

Product Specifications

Attribute	Value
Product name	TUV DC Solar Cable 6mm²
Insulation	XLPO/XLPE
Packing	100m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our 6mm² solar wires are engineered for connecting photovoltaic system components in both indoor and outdoor installations, featuring exceptional durability for extreme weather conditions and high mechanical demands. These cables are ideal for permanent installations on various surfaces including rooftops, RVs, trailers, ships, and recreational vehicles.

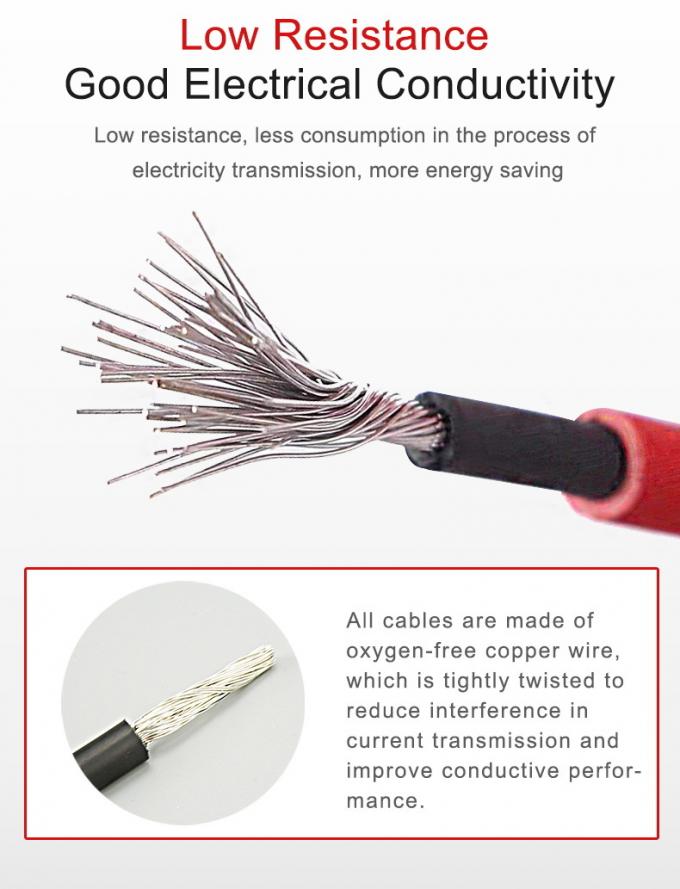

Designed specifically for solar panel systems ranging from 50W to 600W, these cables feature an electrolytic annealed tinned copper conductor with a halogen-free black thermosetting rubber outer sheath for superior performance and safety.

Technical Specifications

TYPE	Cross section (mm²)	Wire structure	Conductor diameter (mm)	Outer diameter (mm)	Conductor resistance (Ω/Km)	Rated voltage (V AC/DC)	Rated current (A)
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Our solar cables offer exceptional durability with a lifespan of approximately 30 years, maintaining performance across various weather conditions and temperatures. They are ozone resistant, protected against ultraviolet rays, and feature low smoke emission with minimal toxicity and corrosivity in fire situations.

Product Image

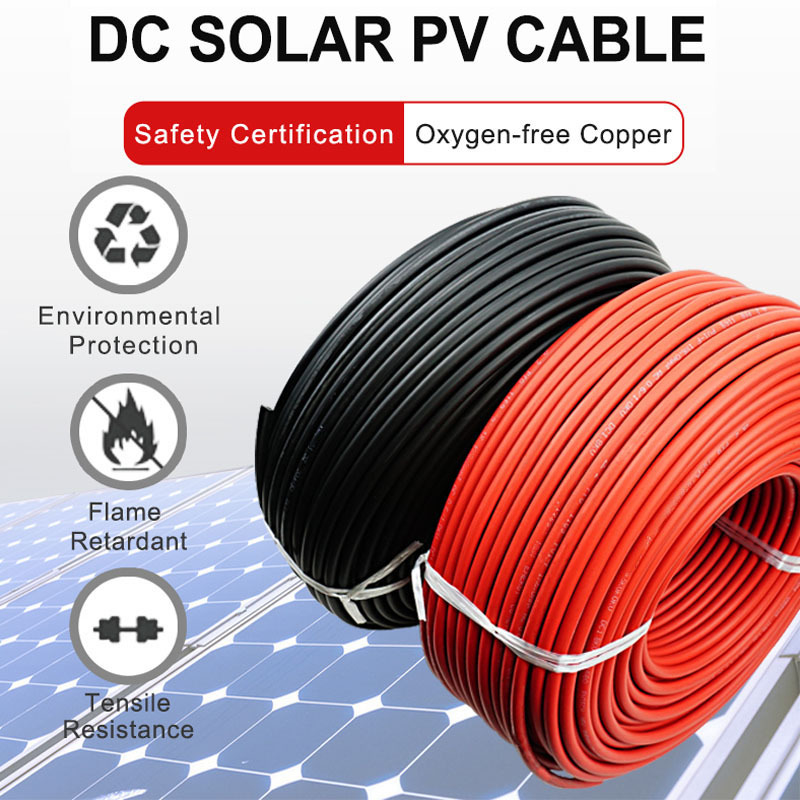

6mm² TUV DC Solar Cable with black and red insulation

Packaging Information

Standard export packaging options:

200m/roll
1000m/roll on pallet or wooden drum

Delivery Information

Delivery typically within 3-10 working days after order confirmation. Shipping options available from Ningbo port or other specified ports with FOB, C&F, and CIF quotations available.

Frequently Asked Questions

1. When can I get the quotation?

We provide quotations within 24 hours of receiving your inquiry. For urgent requests, please contact us directly with complete specifications.

2. How long is the delivery time?

Standard delivery is within 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C payments.

4. Do you accept customized orders?

Yes, we accommodate customized orders to meet specific requirements.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
