TUV Certificate XLPO Insulation DC PV Cable 1000V 1500V 4mm² Solar Power Cable
Product Specifications
| Attribute |
Value |
| Product name |
4mm² PV Cable Solar cable |
| Insulation |
XLPO/XLPE |
| Packing |
100m/roll |
| Conductor |
Tinned copper |
| Structure |
56/0.285mm |
| Rated Voltage |
1KV AC 1500V DC |
| Color |
Black and Red |
Product Description
Our TUV-certified XLPO insulation solar cables (1000V/1500V, 4mm²) are specifically designed for photovoltaic systems, offering superior performance in demanding environmental conditions.
Solar cables require resistance against UV light, extreme temperatures, and weather conditions. These cables interconnect solar panels and other electrical components in photovoltaic systems, conforming to German Standard Committee specifications (Technical Specification 2PFG1169/08.2007).
Ideal for installation on rooftops, RVs, trailers, ships, and recreational vehicles, these cables are suitable for solar panels ranging from 50W to 600W. They feature:
- Electrolytic annealed tinned copper conductor
- Halogen-free black thermosetting rubber outer sheath
- Excellent flexibility for irregular surfaces
| TYPE |
Cross section (mm²) |
Wire struct |
Conductor diameter (mm) |
Outer diameter (mm) |
Conductor resistance (Ω/Km) |
Rated voltage (V AC/DC) |
Rated current (A) |
| 1X4.0mm² |
4 |
56XΦ0.285 |
2.6 |
5.5 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm² |
6 |
84XΦ0.285 |
3.3 |
6.1 |
3.39 |
1000/1800 |
70 |
| 1X10mm² |
10 |
80XΦ0.40 |
4.4 |
7.2 |
2.12 |
1000/1800 |
95 |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen, and ozone
- Superior abrasion resistance for long-term durability
- Halogen-free, flame retardant with low toxicity
- Exceptional flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
Solar cables offer environmental benefits with a service life of approximately 30 years, regardless of weather conditions. They are ozone-resistant, UV-protected, and feature low smoke emission with minimal toxicity and corrosivity in fire situations. Color-coded for easy identification, these cables meet modern environmental regulations and can be recycled without issues.

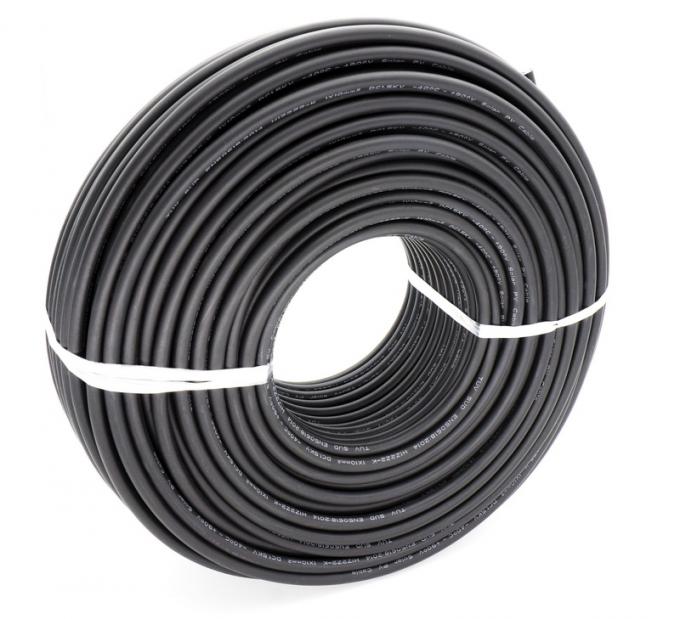

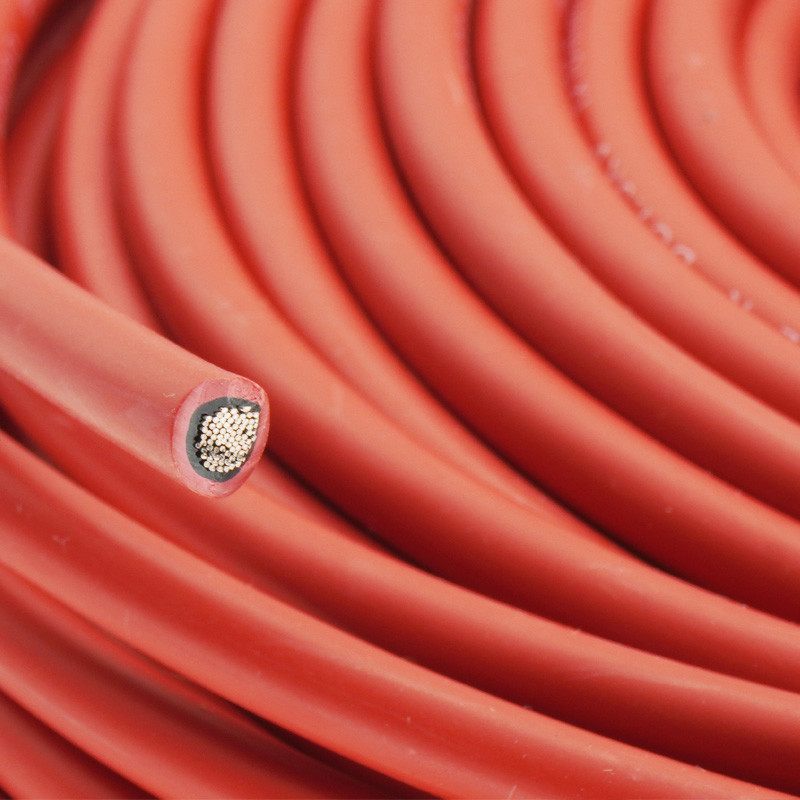

Product Image
Packaging Options
Standard export packaging available in:
- 200m/roll
- 1000m/roll on pallet or wooden drum
Delivery Information
Delivery within 3-10 working days after order confirmation.
Shipping ports: Ningbo, or other ports as required.
Shipping options: FOB, C&F, CIF available. Competitive sea freight rates for Africa and Middle East countries.
Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications for immediate pricing.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment terms do you accept?
We accept T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized specifications.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
