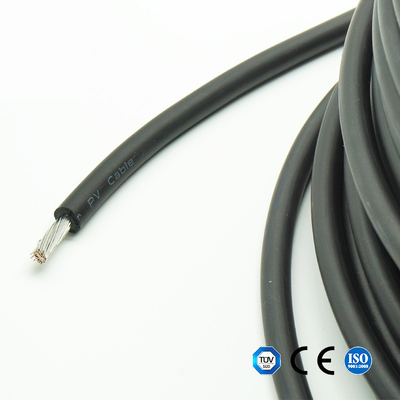

4mm2 Solar PV Cable XLPE Insulated Tinned Copper 100m Roll

Name: 4mm2 Solar PV Cable XLPE Insulated Tinned Copper 100m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            XLPE Insulated DC Solar Cable, 4mm2 DC Power Cable, TUV DC Solar PV Cable


Product Name:	4mm2 PV Cable Solar DC Panel Power	Insulation:	XLPO/XLPE
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	56/0.28mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	4mm2 PV Cable Solar DC Panel Power
Insulation:	XLPO/XLPE
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	56/0.28mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

4mm2 Solar PV Cable XLPE Insulated Tinned Copper 100m Roll

TUV XLPE Insulated Tinned Copper 4mm² Solar PV Cable DC Panel Power

Product Specifications

Attribute	Value
Product name	4mm² PV Cable Solar DC Panel Power
Insulation	XLPO/XLPE
Packing	100m/roll
Conductor	Tinned copper
Structure	56/0.28mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our TUV-certified 4mm² solar PV cable features XLPE insulation and tinned copper conductors, specifically designed for solar panel installations. This high-performance cable is essential for connecting solar panels to ensure optimal power transmission while withstanding environmental challenges.

Developed according to German Standard Committee specifications (Technical Specification 2PFG1169/08.2007), this solar cable is versatile for various installations including rooftops, RVs, trailers, ships, and recreational vehicles. It's suitable for solar panels ranging from 50W to 600W.

Technical Specifications

TYPE	Cross section	Wire struct	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X2.5mm²	2.5	48XΦ0.285	2	5.0	8.06	1000/1800	30
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Our solar cables offer exceptional durability with a lifespan of approximately 30 years, resistant to various weather conditions and temperatures. They provide UV protection and feature low smoke emission with minimal toxicity and corrosivity in fire situations. The color-coded design allows for easy identification during installation.

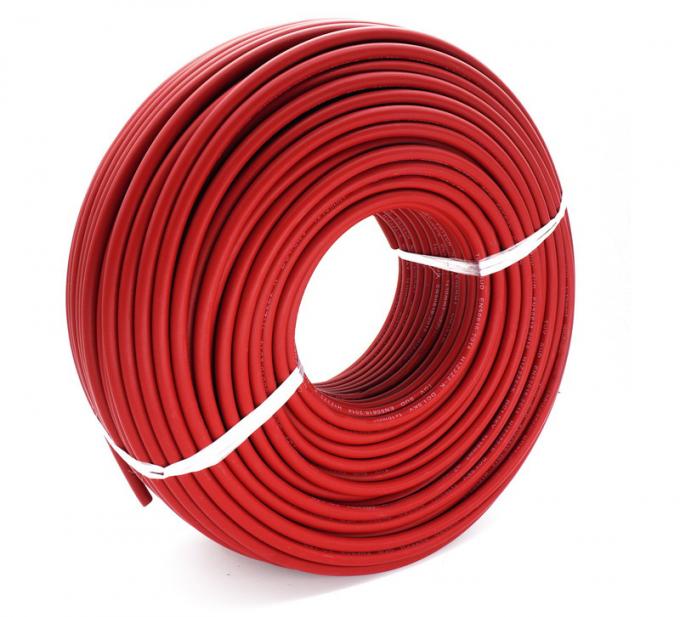

Product Image

Packaging & Delivery

Standard Packaging: 200m/roll, 1000m/roll on pallet or wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Ports: Ningbo or other ports as required
Shipping Options: FOB, C&F, CIF available (competitive rates for Africa and Middle East)

Frequently Asked Questions

1. When can I get the quotation?

We provide quotations within 24 hours of receiving your inquiry. For urgent requests, please call us with complete specifications for immediate pricing.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized orders including OEM & ODM services.
