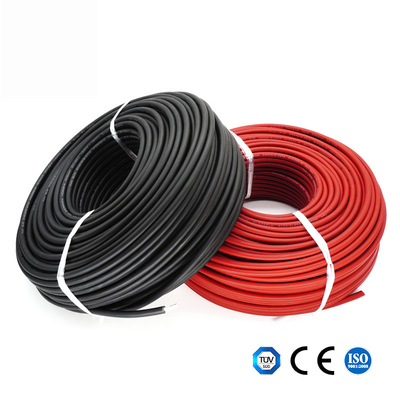

4mm2 Solar PV Cable 100m Roll Tinned Copper XLPE Insulation

Name: 4mm2 Solar PV Cable 100m Roll Tinned Copper XLPE Insulation
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Inverter PV Solar Cable, 100m Per Coil PV Solar Cable, 14AWG Solar Energy Cable


Product Name:	Solar Extension Cable 4mm2	Insulation:	XLPO/XLPE
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	56/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar Extension Cable 4mm2
Insulation:	XLPO/XLPE
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	56/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

4mm2 Solar PV Cable 100m Roll Tinned Copper XLPE Insulation

Solar Extension Cable 4mm² - TUV Certified PV Solar Cable

Product Specifications

Attribute	Value
Product name	Solar Extension Cable 4mm²
Insulation	XLPO/XLPE
Packing	100m/roll
Conductor	Tinned copper
Structure	56/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our TUV certified 6/4/2.5mm² (10/12/14AWG) PV solar cables are specifically designed for solar inverter connections. These cables meet the German Standard Committee's Technical Specification 2PFG1169/08.2007 (Rhein TUV company).

Ideal for various installation scenarios including rooftops, RVs, trailers, ships, and recreational vehicles, these cables are suitable for solar panels ranging from 50W to 600W. The electrolytic annealed tinned copper conductor and halogen-free black thermosetting rubber outer sheath ensure superior performance.

Technical Specifications

TYPE	Cross section	Wire struct	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X2.5mm²	2.5	48XΦ0.285	2	5.0	8.06	1000/1800	30
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

These solar cables offer exceptional durability with a lifespan of approximately 30 years, resistant to various weather conditions and temperatures. They provide protection against ultraviolet rays and feature low smoke emission, minimal toxicity, and reduced corrosivity in fire situations.

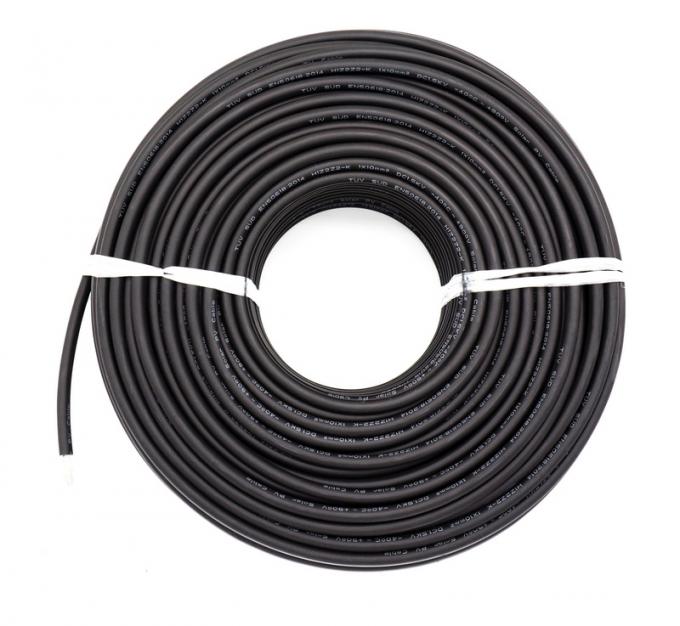

Product Image

Packaging & Delivery

Standard Packaging: 200m/roll or 1000m/roll on pallet/wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Ports: Ningbo or other ports as required
Shipping Options: FOB/C&F/CIF available (special rates for Africa and Middle East)

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment terms do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
