100m Per Roll XLPO Tinned Copper DC Solar PV Cable 4mm2 Solar Panel Wire

Name: 100m Per Roll XLPO Tinned Copper DC Solar PV Cable 4mm2 Solar Panel Wire
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K/PV1-F 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K/PV1-F 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Tinned Copper DC Solar PV Cable, 100m Per Roll Solar PV Cable, XLPO Solar Panel Wire


Product Name:	DC Solar PV Cable 4MM2	Insulation:	XLPO/XLPE
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	56/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	DC Solar PV Cable 4MM2
Insulation:	XLPO/XLPE
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	56/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

100m Per Roll XLPO Tinned Copper DC Solar PV Cable 4mm2 Solar Panel Wire

100m Per Roll XLPO Tinned Copper DC Solar PV Cable 4mm² Solar Panel Wire

Product Specifications

Attribute	Value
Product name	DC Solar PV Cable 4MM²
Insulation	XLPO/XLPE
Packing	100m/roll
Conductor	Tinned copper
Structure	56/0.285mm
Rate Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

This high-quality 4mm² solar PV cable features 56 strands of tinned copper wire with XLPO insulation, designed for optimal performance in solar energy systems.

The TUV-compliant cable ensures stable operation between solar panels and charge controllers, allowing for flexible system customization. Its durable construction makes it suitable for installation on rooftops, RVs, trailers, ships, and recreational vehicles, supporting solar panels from 50W to 600W.

Technical Specifications

TYPE	Cross section (mm²)	Wire struct	Conductor diameter (mm)	Outer diameter (mm)	Conductor resistance (Ω/Km)	Rated voltage (V AC/DC)	Rated current (A)
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance and flexibility
Halogen free, flame retardant with low toxicity
High voltage and current carrying capacity
TUV approved for quality assurance
30+ year lifespan with weather-resistant properties
Low smoke emission and corrosivity in fire situations

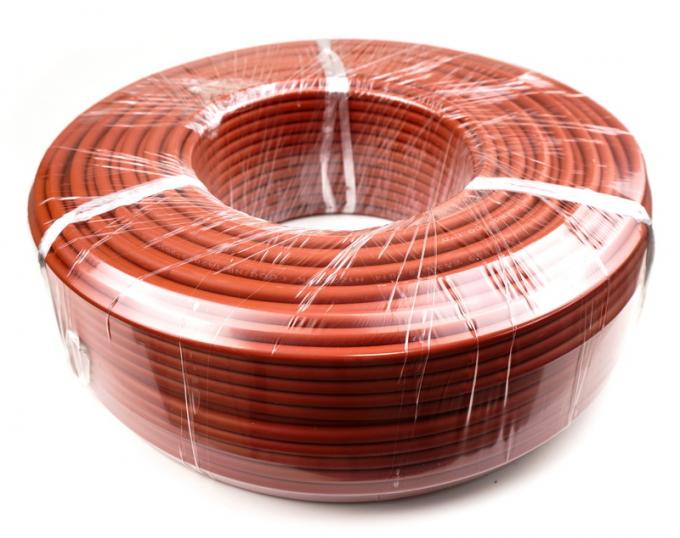

Product Image

Packaging & Delivery

Standard Packaging: 200m/roll, 1000m/roll on pallet or wooden drum

Delivery Time: 3-10 working days after order confirmation

Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
