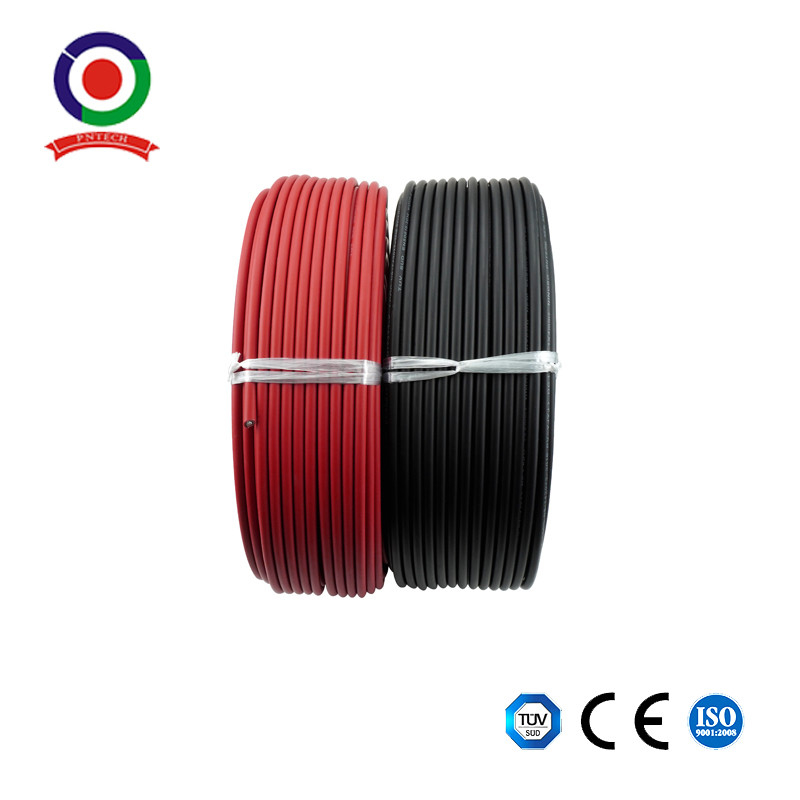

4mm² Tinned Copper PV Wire UV Resistant for Solar Panel MPPT Controller
Product Specifications
| Attribute |
Value |
| Product name |
UV Resistant Cable 12AWG |
| Insulation |
XLPO/XLPE |
| Packing |
100m/roll |
| Conductor |
Tinned copper |
| Structure |
56/0.285mm |
| Rate Voltage |
1KV AC 1500V DC |
| Color |
Black and Red |
Product Description
4mm² Tinned Copper PV Wire UV Resistant Cable is specifically designed for solar panel MPPT controllers, offering superior performance and durability in solar energy applications.
Compatible with PV cables (Solar Cable/Wire) with different insulation diameters (14AWG to 10 AWG), making it suitable for various solar cable specifications available in the market.
This solar cable features an electrolytic annealed tinned copper conductor and a halogen-free black thermosetting rubber outer sheath, meeting the German Standard Committee's Technical Specification 2PFG1169/08.2007.
Technical Specifications
| TYPE |
Cross section |
Wire struct |
Conductor diameter |
Outer diameter |
Conductor resistance |
Rated voltage |
Rated current |
| 1X4.0mm2 |
4 |
56XΦ0.285 |
2.6 |
5.5 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm2 |
6 |
84XΦ0.285 |
3.3 |
6.1 |
3.39 |
1000/1800 |
70 |
| 1X10mm2 |
10 |
80XΦ0.40 |
4.4 |
7.2 |
2.12 |
1000/1800 |
95 |
Key Features
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen and ozone
- Superior abrasion resistance
- Halogen free, flame retardant with low toxicity
- Exceptional flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
Applications
Ideal for connecting solar panels in various installations including rooftops, RVs, trailers, ships, and recreational vehicles. Suitable for solar panel systems ranging from 50W to 600W.

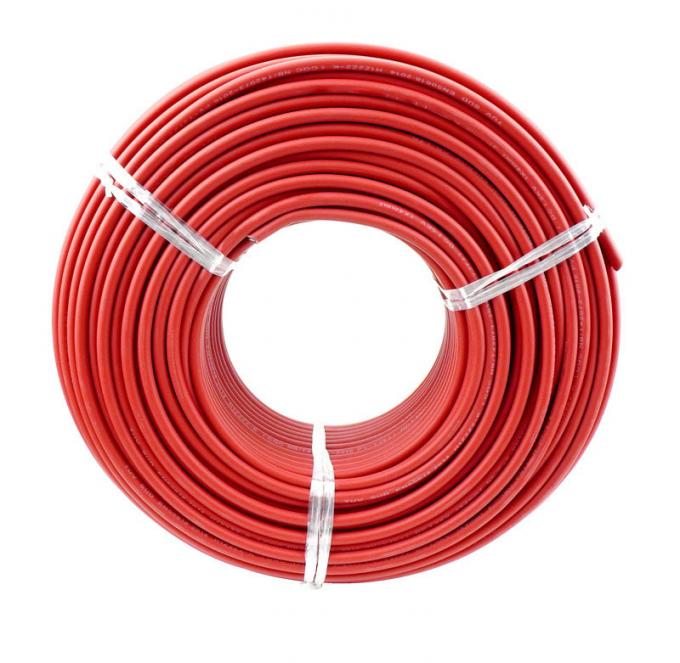

Product Image
Packaging & Delivery
Standard Packaging: 200m/roll, 1000m/roll on pallet or wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports
Frequently Asked Questions
When can I get the quotation? - Within 24 hours of inquiry
How long is the delivery time? - Typically 3-4 working days after payment
What payment methods do you accept? - T/T (bank transfer), L/C
Do you accept customized orders? - Yes, we do
Do you offer OEM & ODM services? - Yes, both are available
