Tinned Copper UV Resistant Solar Panel PV Cable For MPPT Controller 12AWG
Product Specifications
| Attribute |
Value |
| Product name |
PV Wire UV Resistant Cable 12AWG |
| Insulation |
XLPO/XLPE |
| Packing |
100m/roll |
| Conductor |
Tinned copper |
| Structure |
56/0.285mm |
| Rate Voltage |
1KV AC 1500V DC |
| Color |
Black and Red |
Product Description
12AWG Tinned Copper PV Wire UV Resistant Cable for Solar Panel MPPT Controller features an insulation layer made of excellent XLPO material, offering superior flame retardancy, self-extinguishing properties, high strength, abrasion resistance, and corrosion resistance.
This solar cable conforms to German Standard Committee specifications (Technical Specification 2PFG1169/08.2007 in Rhein TUV company German). It's designed for easy installation on irregular surfaces including rooftops, RVs, trailers, ships, and recreational vehicles, suitable for 50W to 600W solar panel systems.
Technical Specifications
| TYPE |
Cross section |
Wire struct |
Conductor diameter |
Outer diameter |
Conductor resistance |
Rated voltage |
Rated current |
| 1X4.0mm2 |
4 |
56XΦ0.285 |
2.6 |
5.5 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm2 |
6 |
84XΦ0.285 |
3.3 |
6.1 |
3.39 |
1000/1800 |
70 |
| 1X10mm2 |
10 |
80XΦ0.40 |
4.4 |
7.2 |
2.12 |
1000/1800 |
95 |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen and ozone
- Superior abrasion resistance
- Halogen free, flame retardant with low toxicity
- Excellent flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
Our solar cables offer exceptional durability (approximately 30 years service life) with weather, temperature, and ozone resistance. They feature UV protection, low smoke emission, minimal toxicity, and fire resistance while meeting modern environmental recycling regulations.

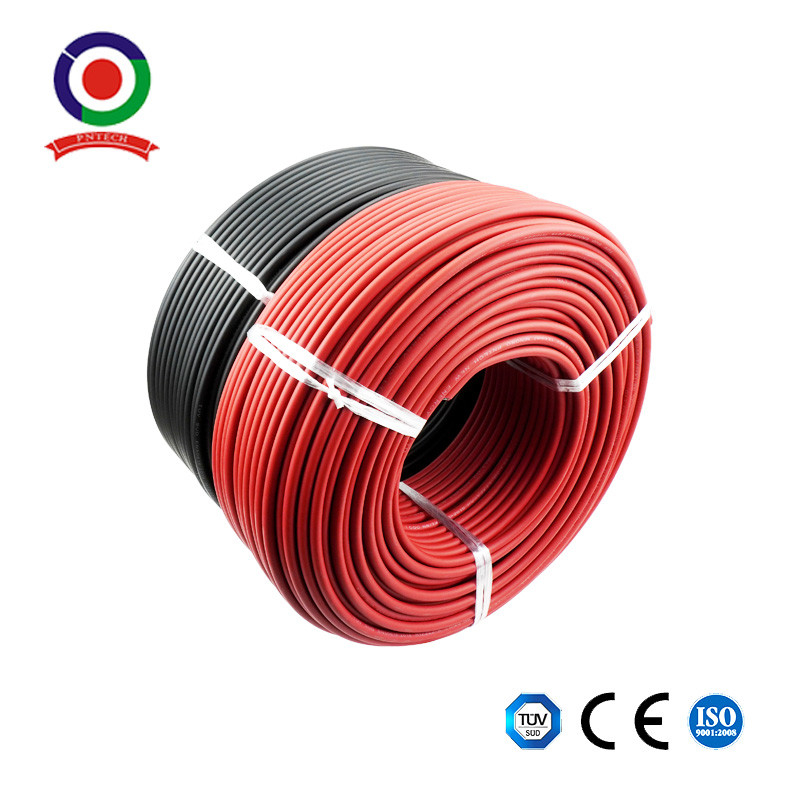

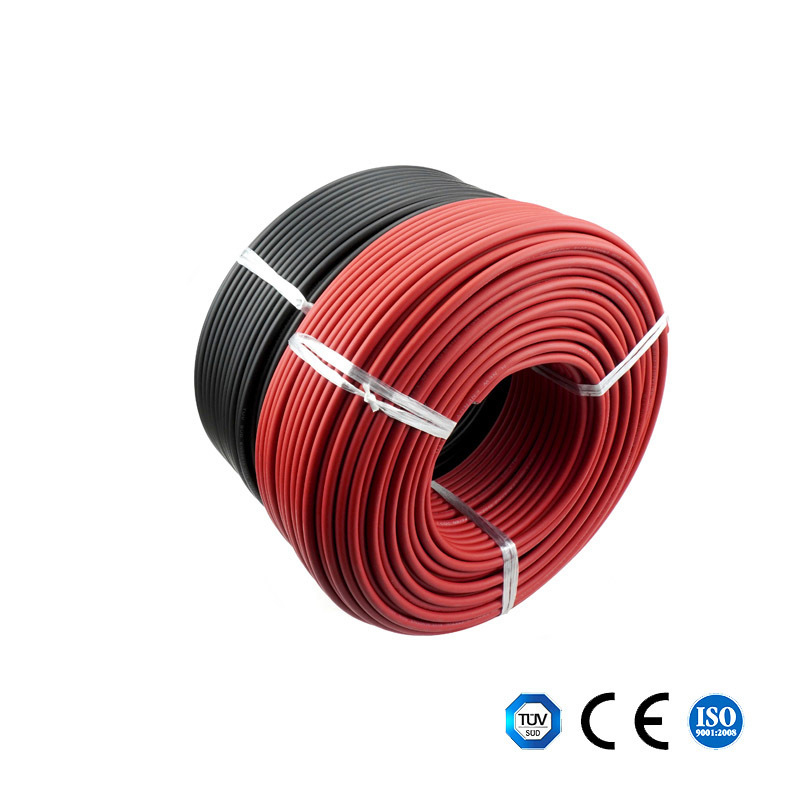

Product Image
Packaging & Delivery
Standard Packaging: 200m/roll, 1000m/roll on pallet or wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports
Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of inquiry. For urgent requests, please call with complete specifications.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment terms do you accept?
T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized specifications.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
