Black 2.5mm2 PV Wire Solar Extension Cable For Outdoor Automotive RV Boat Marine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar Cable 2.5mm||Structure||50/0.25mm|
|Insulation Material||XLPE||Jacket Material||XLPE|
|Conductor Material||Stranded Tinned Copper||Cable OD||5.3mm|
|Resistance||≤8.21（Ω/KM）||Rated Voltage||AC Uo/U0.6~1.0KV , DC1.8KV|
|Color||Black / Red||Packing||250m Per Roll|
RV Solar Extension Cable,
Solar Extension PV Wire,
Outdoor Automotive PV Cable
Black 2.5mm² PV Wire Solar Extension Cable for Outdoor Automotive RV Boat Marine
The sheath/insulation material is XLPO to protect the wires from wear and chemical corrosion. Weatherproof, moisture-proof, UV-proof.
Tinned copper is durable and flexible. Compared with aluminum materials, it has lower resistance and higher conductivity.
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
|TYPE||Cross section||Wire struct||Conductor diameter||Outer diameter||Conductor resistance||Rated voltage||Rated current|
|mm2||No.OD (mm)||mm||mm||Ω/Km||V AC/DC||A|
Outstanding Advantages :
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F|
|25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 4mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

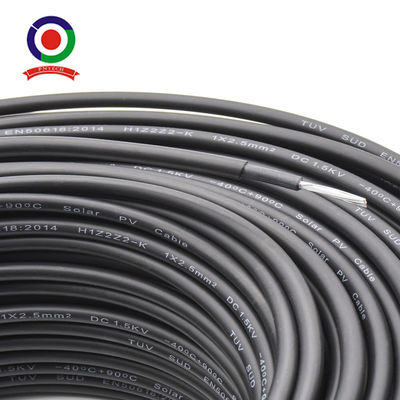

Pictures of 2.5mm DC Solar Cable
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
