H1z2z2 - K TUV EN50618 Single Core Solar Power DC Cable 1500V 1.5mm² 250m
Product Specifications
| Attribute |
Value |
| Product name |
1.5mm² Solar Power DC Cable |
| Insulation |
XLPO |
| Packing |
100m/roll |
| Conductor |
Tinned copper |
| Structure |
22/0.28mm |
| Rated Voltage |
1KV AC / 1500V DC |
| Color |
Black and Red |
Product Description
50m H1z2z2-K TUV EN50618 single core 1.5mm² Solar Power DC Cable with 1500V rating.
The cable features XLPO sheath/insulation material for superior protection against wear, chemical corrosion, weather, moisture, and UV rays. Designed for easy installation on irregular surfaces including rooftops, RVs, trailers, ships, and recreational vehicles. Suitable for connecting 50W to 600W solar panels.
Technical Specifications
| Type |
Cross section |
Wire structure |
Conductor diameter |
Outer diameter |
Conductor resistance |
Rated voltage |
Rated current |
| 1X1.5mm² |
1.5 |
22XΦ0.285 |
1.58mm |
3.2mm |
13.5 Ω/Km |
1000/1800V |
20A |
| 1X4.0mm² |
4 |
56XΦ0.285 |
2.6mm |
5.5mm |
5.09 Ω/Km |
1000/1800V |
50A |
| 1X6.0mm² |
6 |
84XΦ0.285 |
3.3mm |
6.1mm |
3.39 Ω/Km |
1000/1800V |
70A |
| 1X10mm² |
10 |
80XΦ0.40 |
4.4mm |
7.2mm |
2.12 Ω/Km |
1000/1800V |
95A |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen and ozone
- Superior abrasion resistance
- Halogen free, flame retardant with low toxicity
- Excellent flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
Solar cables offer exceptional durability lasting approximately 30 years, withstanding various weather conditions and temperatures while remaining ozone resistant. They feature UV protection, low smoke emission, minimal toxicity, and corrosion resistance in fire situations. The color-coded design allows for easy identification during installation.

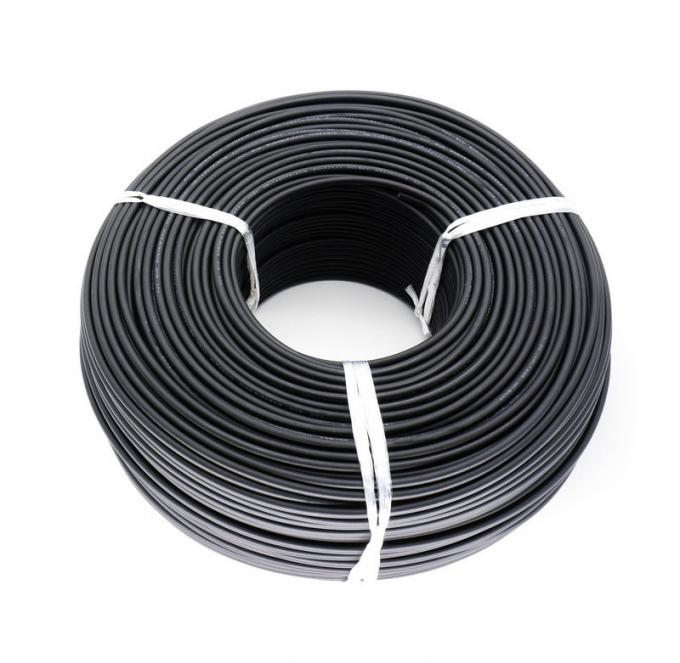

Product Image
Packaging & Delivery
Standard Export Package: 100m/roll, 1000m/roll on pallet or wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Ports: Ningbo or other ports as required
Shipping Options: FOB, C&F, CIF available (special rates for Africa and Middle East countries)
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of inquiry. For urgent requests, please call with complete specifications.
How long is the delivery time?
Typically 3-4 working days after payment, depending on quantity.
What payment terms do you accept?
We accept T/T (bank transfer) and L/C.
Do you accept customized orders?
Yes, we accept both customized orders and OEM/ODM services.
