1.5mm2 XLPO Solar DC Cable 1500V Tinned Copper TUV EN50618
1.5mm2 XLPO Solar DC Cable 1500V Tinned Copper TUV EN50618
1.5mm2 XLPO Solar DC Cable 1500V Tinned Copper TUV EN50618

1.5mm2 XLPO Solar DC Cable 1500V Tinned Copper TUV EN50618

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x1.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

1500V DC Cable Wire

,

XLPO DC Cable Wire

,

EN50618 Solar PV Wire

Product Name:
Solar Wire Cable
Insulation:
XLPO
Packing:
100m/roll
Conductor:
Tinned Copper
Struction:
22/0.28mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Product Name:
Solar Wire Cable
Insulation:
XLPO
Packing:
100m/roll
Conductor:
Tinned Copper
Struction:
22/0.28mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Description
1.5mm2 XLPO Solar DC Cable 1500V Tinned Copper TUV EN50618
1.5mm² Single Core XLPO Solar Power DC Cable Wire 1500V H1z2z2-K TUV EN50618
Product Specifications
Attribute Value
Product name solar wire cable
Insulation XLPO
Packing 100m/roll
Conductor Tinned copper
Structure 22/0.28mm
Rated Voltage 1KV AC 1500V DC
Color Black and Red
Product Description

H1z2z2-K TUV EN50618 single core 1.5mm² XLPO Solar Power DC Cable Wires DC 1500V.

Compared with aluminum materials, it has lower resistance and higher conductivity.

Key Features
  • Wide Compatibility: Suitable for solar panels, DC circuits, marine applications, automotive, RV, LED, and inverter wiring.
  • Premium XLPO Material: Weatherproof, moisture-proof, UV-resistant sheath protects against wear and chemical corrosion.
  • Flexible Installation: Easy to use on irregular surfaces including rooftops, RVs, trailers, ships, and recreational vehicles.
  • Optimal Performance: Suitable for installing 50W to 600W solar panels with excellent conductivity.
Technical Specifications
TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
1X4.0mm² 4 56XΦ0.285 2.6 5.5 5.09 1000/1800 50
1X6.0mm² 6 84XΦ0.285 3.3 6.1 3.39 1000/1800 70
1X10mm² 10 80XΦ0.40 4.4 7.2 2.12 1000/1800 95
Product Advantages
  • Dual wall insulation with electron beam cross-linking
  • Excellent resistance to UV, oil, greases, oxygen and ozone
  • Superior abrasion resistance
  • Halogen free, flame retardant with low toxicity
  • Excellent flexibility and stripping performance
  • High voltage and current carrying capacity
  • TUV approved for quality assurance

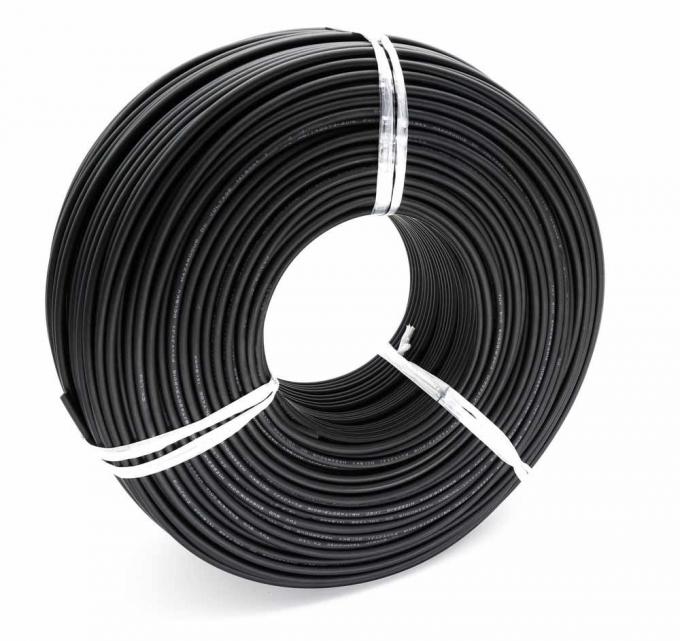

Product Image

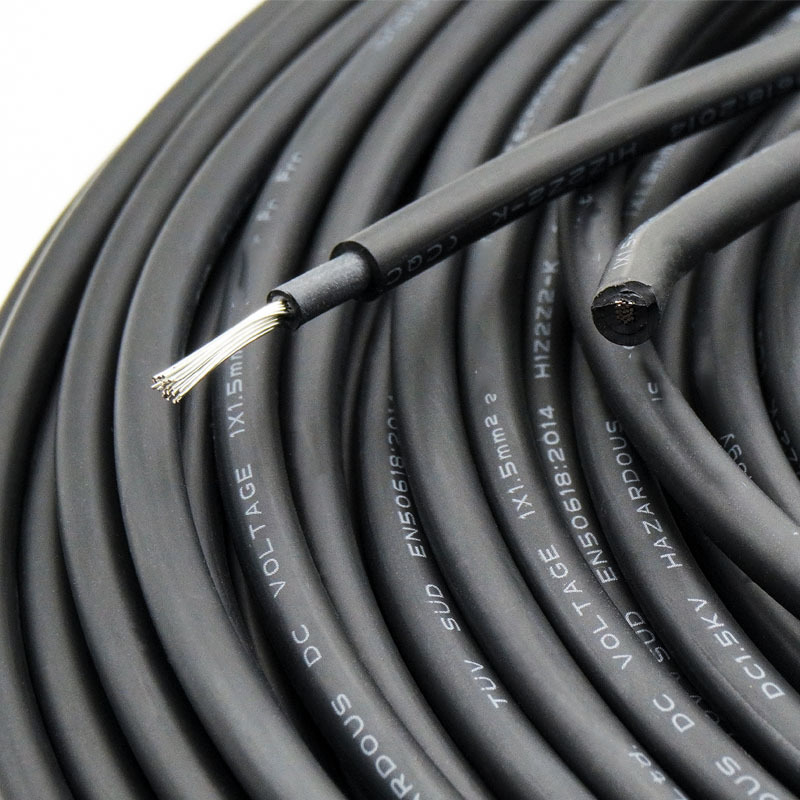

1.5mm² PV Solar Wire Cable
Packaging & Delivery

Standard Export Package: 100m/roll, 1000m/roll on pallet or wooden drum

Delivery Time: 3-10 working days after order confirmation

Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports

Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment methods do you accept?
We accept T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized orders.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
