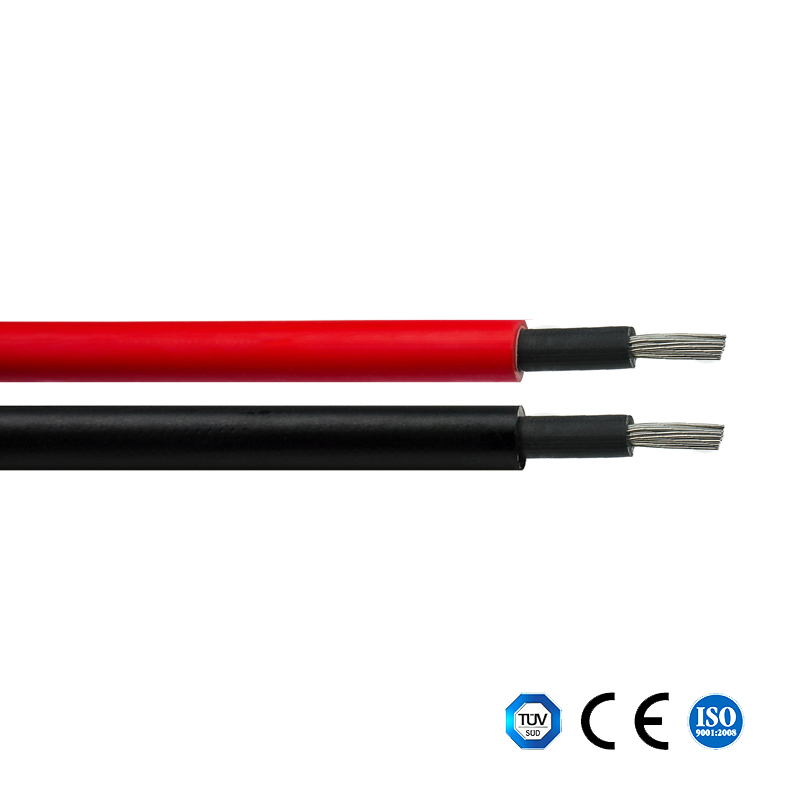

H1z2z2 - K TUV Single Core 1.5mm² XLPO Solar Power Cable Wires DC 1500V
Product Specifications
| Attribute |
Value |
| Product name |
solar wire cable |
| Insulation |
XLPO |
| Packing |
250m/roll |
| Conductor |
Tinned copper |
| Structure |
22/0.285mm |
| Rate Voltage |
1KV AC 1500V DC |
| Color |
Black and Red |
Product Description
H1z2z2-K TUV single core 1.5mm² XLPO Solar Power Cable Wires DC 1500V features premium XLPO insulation material that protects against wear, chemical corrosion, and environmental factors. Weatherproof, moisture-proof, and UV-resistant, this cable is ideal for installation on rooftops, RVs, trailers, ships, and recreational vehicles.
Designed for connecting solar panels (50W to 600W), these cables feature electrolytic annealed tinned copper conductors and halogen-free black thermosetting rubber outer sheaths.
Technical Specifications
| TYPE |
Cross section |
Wire struct |
Conductor diameter |
Outer diameter |
Conductor resistance |
Rated voltage |
Rated current |
| 1X4.0mm² |
4 |
56XΦ0.285 |
2.6 |
5.5 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm² |
6 |
84XΦ0.285 |
3.3 |
6.1 |
3.39 |
1000/1800 |
70 |
| 1X10mm² |
10 |
80XΦ0.40 |
4.4 |
7.2 |
2.12 |
1000/1800 |
95 |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen, and ozone
- Superior abrasion resistance
- Halogen free, flame retardant, and low toxicity
- Excellent flexibility and stripping performance
- High voltage and current carrying capacity
- TUV approved for quality assurance
Our solar cables offer exceptional durability (up to 30 years), weather resistance, and UV protection. They feature low smoke emission, minimal toxicity, and meet modern environmental regulations. Color-coded for easy identification.
Packaging & Delivery
Standard Export Package: 200m/roll or 1000m/roll on pallet/wooden drum
Delivery Time: 3-10 working days after order confirmation
Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports
Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of inquiry. Urgent requests can be expedited by phone with complete specifications.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment methods do you accept?
We accept T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized specifications.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
For more information about our solar cables, please contact our sales team.
