1500V 12AWG Y Branch Connector 1 To 3 For Solar Panel
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Y Branch Solar Connector 1500V||Conductor Material||Tinned Copper|
|Rated Voltage||1500VDC||Protection Degree||IP67|
12AWG Y Branch Connector,
Y Branch Solar Branch Connector,
1500V Y Branch Connector
1500V 12AWG solar cable Y Branch Solar Connector 1 to 3 for Solar Panel
Solar panel cable splitter is certified by TÜV, made with PPO material, the contact is made with Copper, silver plated.
Premium material of this mc4 cable makes sure that this paneles solares wiring can keep working stably in temperature from -40℉ to 194℉. This solar panel extension cable has a maximum voltage of 1500VDC and a 30A rated current.
An IP67 waterproof ring on the male solar wire connector adapter is perfect to seal out water and dust to prevent corrosion. These solar connectors mc4 extension cable connectors are stable and safe with the built-in lock which is long durable in outdoor environment.
Solar connector with high temperature, fire, anti-aging and anti-ultraviolet and other properties to meet the outdoor environment under the conditions of long-term use.
* Male and female exchange with self-locking function, electrical connection is completely reliable, open and close freely.
* Wide range of applicability, can be inserted.
|Connector||Connector name||Solar Connector|
|Rated voltage||1500V DC|
|Degree of protection||IP67|
|Temperature range||-40℃ ~ +110℃|
|Insertion force/withdrawal force||≤50N/≥50N|
|Cable conductor||Tinned copper or bare copper|
|Cable Length||0.1m-10m Optional|
|function||UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance|
|Temperature Range||-40℃ ~ +90℃|
|Product warranty time||Return Policy: Provide within half of a month.|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

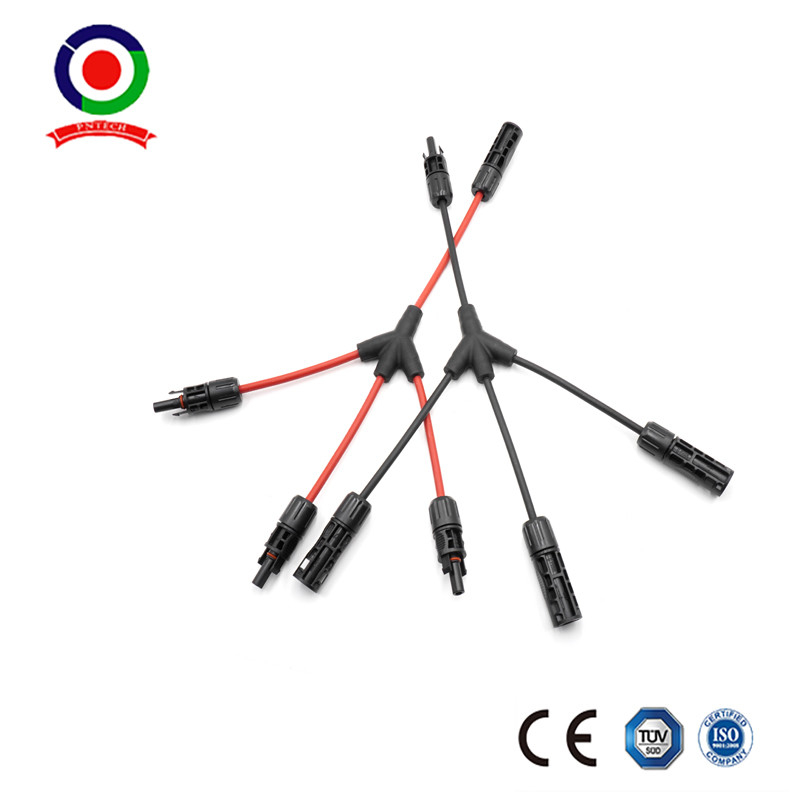

Picture of 1500V 3 T1 Branch Solar Connector
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
