UV Resistance Solar Panel Extension Cable 6mm2 PV Cable Mc4 Connector TUV

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

UV Resistance Solar Panel Extension Cable

,

Mc4 Connector Solar Panel Extension Cable

,

Extension 6mm2 PV Cable

Product Name:
6mm2 Solar Extension Cable
Test Voltage:
6KV
Degree Of Protection:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Product Name:
6mm2 Solar Extension Cable
Test Voltage:
6KV
Degree Of Protection:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Description
UV Resistance Solar Panel Extension Cable 6mm2 PV Cable Mc4 Connector TUV

6mm2 PV Cable Mc4 Connector UV Resistance Solar Panel Extension Cable TUV



Description:



The sheath/insulation material is XLPO to protect the wires from wear and chemical corrosion. has good flame retardancy, high strength, weather resistance, fatigue resistance and temperature resistance.
WIDE COMPATIBILITY: wire widely used in various high voltage electronic device wiring,can be used for solar panels, DC circuits, Boat, Marine, Automotive, RV , LED and inverter wiring etc.

Solar panel wires with only one solar connector at one end for solar panel, and bare on the other end for the solar charge controller with the red one (female) and black one (male).

The wiring is weatherproof and designed to withstand extreme heat and cold. Different brands of solar panel connectors may have different polarities.



SOLAR CABLE Technical Data

Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
16AWG 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
14AWG 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
12AWG 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
10AWG 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95



1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.



SOLAR CONNECTOR Technical Data
Trademark PNTECH
Type PV004-EN
Rated Voltage 1000VDC
Rated impulse voltage 8000V
Rated insulation voltage 6000V
Rated Current 30A
Standard EN50521:11-2008
Protection Degree IP67
Contact Resistance ≤5mΩ
Pollution Degree 2
Ambient Temperature -40~+85℃
Cable cross section area 2,5mm2, 4,0mm², 6,0mm2
Insulation Material PC EXL9330
Flame Class UL94-V0



Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

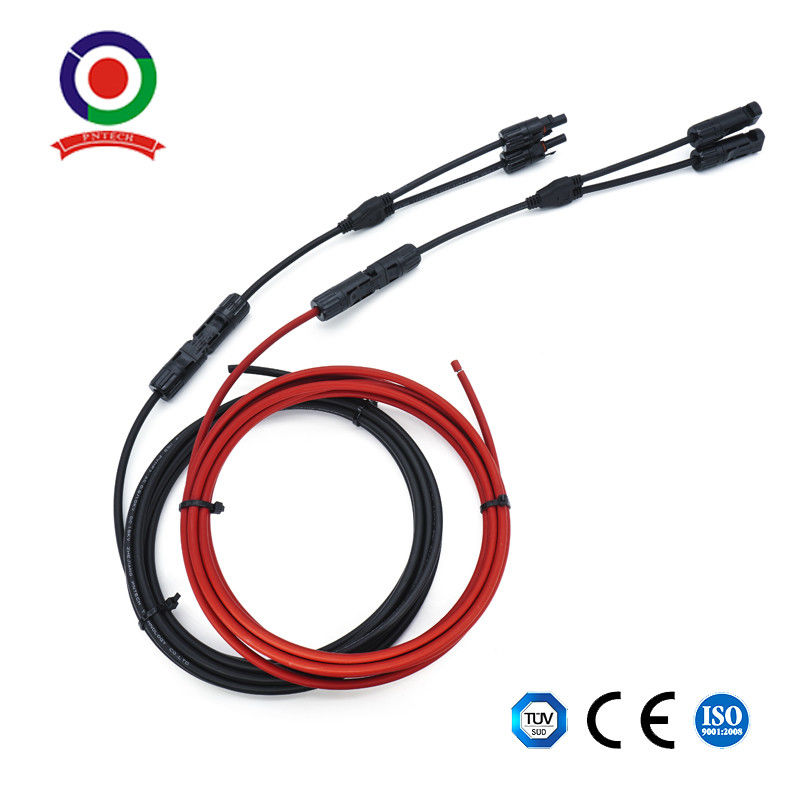

Picture of 6mm2
 Solar Extension Cable
