Waterproof 3 Metres / 10 Feet 6mm2 Solar Extension Cables For System

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number DC-00
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 6mm2 Solar Extension Cables Test Voltage 6KV
Degree Of Protection IP67 Rated Current 30A
Contact Resistance ≤5mΩ Color Black
High Light

6mm2 Solar Extension Cables


Waterproof Solar Extension Cables


3m Solar Panel Extension Cable

Leave a Message
Product Description

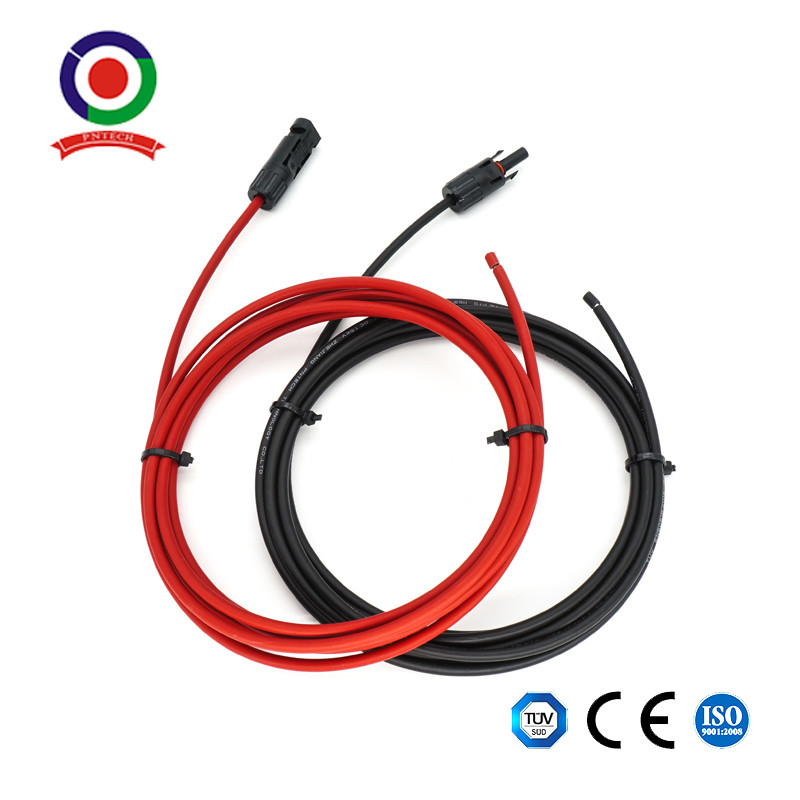

Black and Red Waterproof 3 Metres/10 Feet 6mm2 Solar Extension Cables for System


One pair of solar extension cables (10 feet red + 10 feet black) to extend the distance of where your solar panel is placed.
Both ends pre-crimped female and male solar connectors, making the connection easy and quick.
Cables are weatherproof, UV and corrosion resistant, and able to withstand extreme environmental conditions.

Solar panel wires with only one solar connector at one end for solar panel, and bare on the other end for the solar charge controller with the red one (female) and black one (male).

The wiring is weatherproof and designed to withstand extreme heat and cold. Different brands of solar panel connectors may have different polarities.


Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95


1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.


Trademark PNTECH
Type PV004-EN
Rated Voltage 1000VDC
Rated impulse voltage 8000V
Rated insulation voltage 6000V
Rated Current 30A
Standard EN50521:11-2008
Protection Degree IP67
Contact Resistance ≤5mΩ
Pollution Degree 2
Ambient Temperature -40~+85℃
Cable cross section area 2,5mm2, 4,0mm², 6,0mm2
Insulation Material PC EXL9330
Flame Class UL94-V0

Assembly Instructions


During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

Picture of
10AWG Solar Extension Cable

Waterproof 3 Metres / 10 Feet 6mm2 Solar Extension Cables For System 0


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
