TUV 12 AWG Solar Panel Mc4 Solar Wire PV Extension Cables

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now

Solar Panel Mc4 Solar Wire


Mc4 Solar PV Extension Cables


12 AWG Mc4 Solar Wire

Product Name:
12AWG Solar Extension Cable
Test Voltage:
Degree Of Protection:
Rated Current::
Contact Resistance:
Product Name:
12AWG Solar Extension Cable
Test Voltage:
Degree Of Protection:
Rated Current::
Contact Resistance:
TUV 12 AWG Solar Panel Mc4 Solar Wire PV Extension Cables

TUV 12 AWG Solar Panel Mc4 Cable Mc4 Solar Wire Mc4 Solar PV Extension Cables




High-quality & soft XLPO material and high quality Tinned Copper Wire,12Awg Copper Wire Has a Larger Diameter Cable, Reduce Power Loss,Double XLPO jacket, best insulation effect, 120°C heat resistance, flexible and wear-resistant.

1000V Solar Female and Male connectors: PC insulation material with excellent aging resistance and UV endurance. It can be used in the outdoor iron environment.
Solar panel wires with only one solar connector at one end for solar panel, and bare on the other end for the solar charge controller with the red one (female) and black one (male).

The wiring is weatherproof and designed to withstand extreme heat and cold. Different brands of solar panel connectors may have different polarities.


SOLAR CABLE Technical Data

Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
16AWG 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
14AWG 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
12AWG 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
10AWG 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95


1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.


Trademark PNTECH
Type PV004-EN
Rated Voltage 1000VDC
Rated impulse voltage 8000V
Rated insulation voltage 6000V
Rated Current 30A
Standard EN50521:11-2008
Protection Degree IP67
Contact Resistance ≤5mΩ
Pollution Degree 2
Ambient Temperature -40~+85℃
Cable cross section area 2,5mm2, 4,0mm², 6,0mm2
Insulation Material PC EXL9330
Flame Class UL94-V0


Assembly Instructions


During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

Picture of

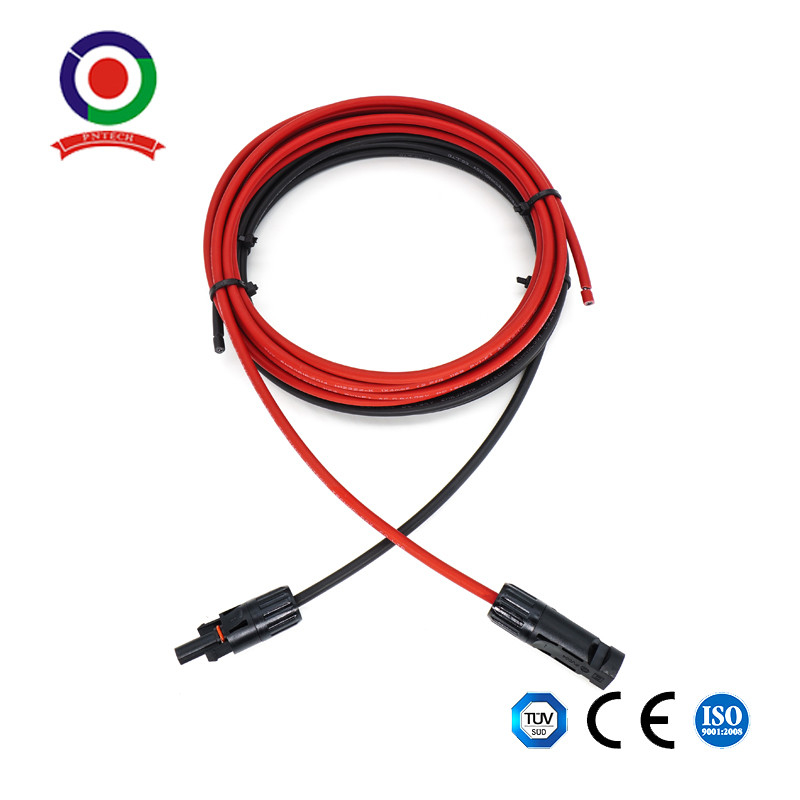

12AWG Solar Extension Cable

TUV 12 AWG Solar Panel Mc4 Solar Wire PV Extension Cables 0
