10 AWG Solar Panel Extension Cable With Female Male Connector 6KV TUV
|Product Name||10 AWG Solar Extension Cable||Test Voltage||6KV|
|Degree Of Protection||IP67||Rated Current||30A|
10 AWG Solar Panel Extension Cable,
Male Connector Extension Cables 6KV,
Outdoor Solar Panel Extension Cable
TUV approved 10 AWG Solar Extension Cable with Solar Female and Male Connector
Solar panel cable is designed for outdoor using with UV and anti-waterproof, anti- corrosion, and suitable for extreme heat and cold surrounding.
Solar panel wires with only one solar connector at one end for solar panel, and bare on the other end for the solar charge controller with the red one (female) and black one (male).
The wiring is weatherproof and designed to withstand extreme heat and cold. Different brands of solar panel connectors may have different polarities.
|mm²||No.x ø (mm)||mm||Ω /km||mm||VAC/DC||A||Kg/km|
|PV-1*1.5 mm²||1.5||30x ø 0.25||1.6||13.5||4.8||1000/1800||30||35|
|PV-1*2.5 mm²||2.5||50x ø 0.25||2.0||8.21||5.3||1000/1800||41||50|
|PV-1*4.0 mm²||4.0||56x ø 0.3||2.6||5.09||6.1||1000/1800||55||70|
|PV-1*6.0 mm²||6.0||84x ø 0.3||3.3||3.39||7.1||1000/1800||70||95|
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
|Rated current:||22A(2.5mm2) , 30A(4mm2,6mm2)|
|Contact material:||Silver plated copper|
|Contact resistance of plug connectors:||≤5mΩ|
|Locking system:||Snap in|
|Rated voltage||TUV 1000V DC|
|Suitable cable cross sections||2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG|
|Test voltage||DC 8KV 1min|
|Protection class||Class II|
|Terminal Material||Tinned copper|
|Contact resistance||≤ 5mΩ|
|IP rating||IP67(IEC 60529)|
|Pull-out force||≥ 50N|
|Insertion Force||≤ 50N|
|Test temperature||-40ºC~ +85ºC|
|Flame Class||UL94V - 0|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

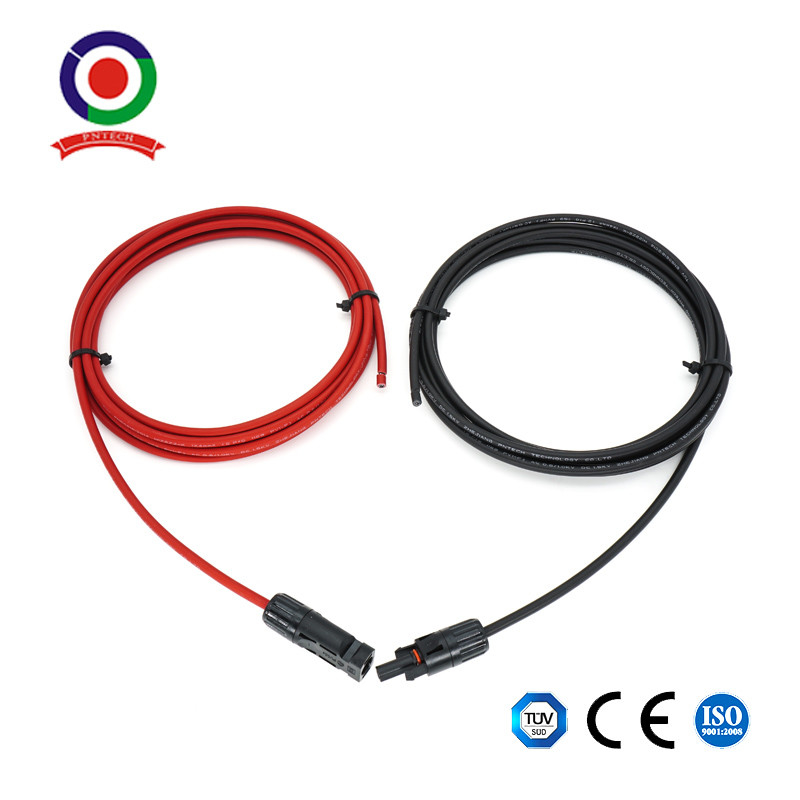

Picture of 10AWG Solar Extension Cable
