4.0mm2 1500V TUV IEC Solar PV Cable XLPE Double Insulation Halogen Free

Name: 4.0mm2 1500V TUV IEC Solar PV Cable XLPE Double Insulation Halogen Free
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            XLPE Double Insulation Solar PV Cable, Solar PV Cable 4.0mm2, Halogen Free Solar System Cable


Product Name:	Solar PV Cable 4mm2	Insulation:	XLPO
Packing:	100m/roll	Conductor:	Tinned Copper
Struction:	56/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar PV Cable 4mm2
Insulation:	XLPO
Packing:	100m/roll
Conductor:	Tinned Copper
Struction:	56/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

4.0mm2 1500V TUV IEC Solar PV Cable XLPE Double Insulation Halogen Free

4.0mm² 1500V TUV IEC Solar PV Cable XLPE Double Insulation Halogen Free

Product Specifications

Attribute	Value
Product name	Solar PV Cable 4mm²
Insulation	XLPO
Packing	100m/roll
Conductor	Tinned copper
Structure	56/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

4.0mm² XLPE Double Insulation Halogen Free 1500V TUV and IEC certified Solar PV Cable features tinned copper conductors with cross-linked Polyolefin Compound insulation for environmentally friendly energy transmission.

Designed for easy installation on irregular surfaces including rooftops, RVs, trailers, ships, and recreational vehicles. Suitable for solar panels ranging from 50W to 600W.

Technical Specifications

TYPE	Cross section (mm²)	Wire structure	Conductor diameter (mm)	Outer diameter (mm)	Conductor resistance (Ω/Km)	Rated voltage (V AC/DC)	Rated current (A)
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Excellent flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Solar PV cables offer exceptional durability with a lifespan of approximately 30 years, resistant to various weather conditions and temperatures. They feature UV protection, low smoke emission, and minimal toxicity. The color-coded design allows for easy identification during installation.

Product Image

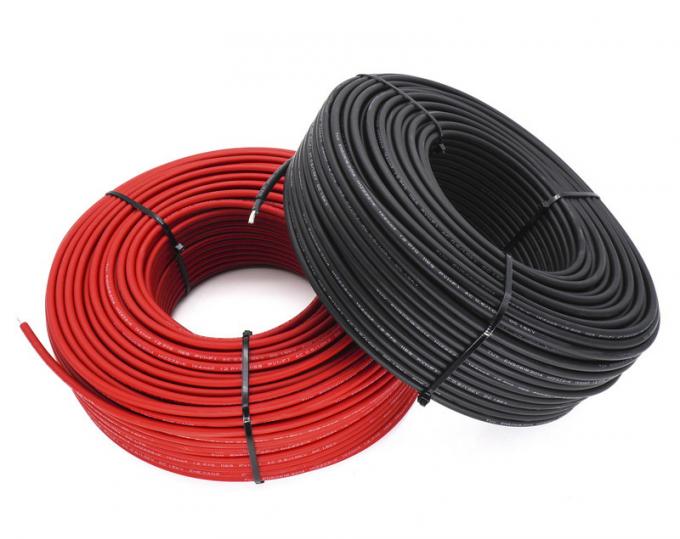

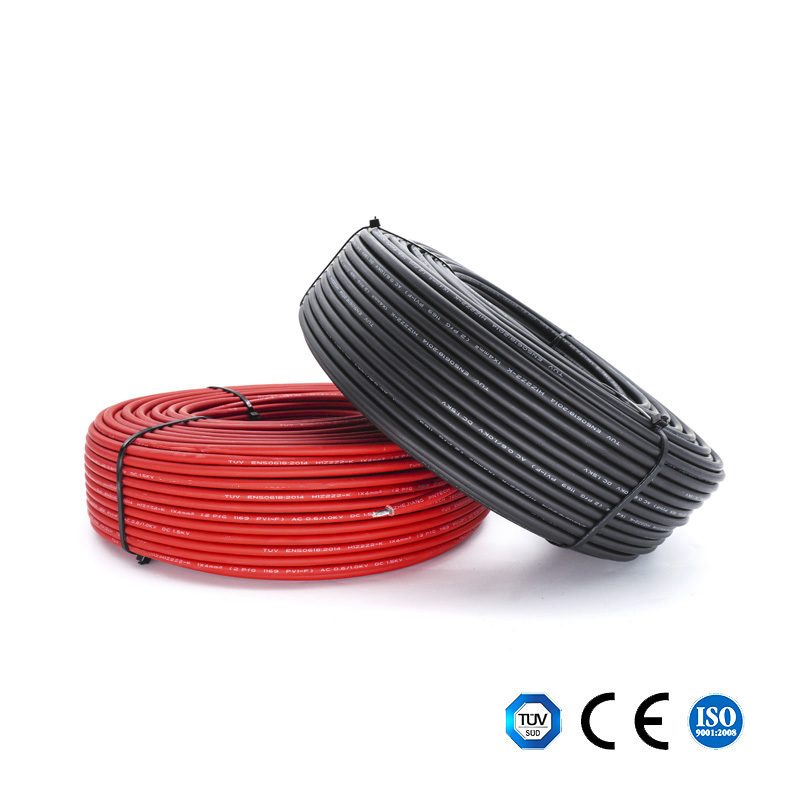

4.0mm² Solar PV Cable with black and red insulation

Packaging Information

Standard export packaging: 200m/roll or 1000m/roll on pallet or wooden drum

Delivery Details

Delivery within 3-10 working days after order confirmation. Shipping options include FOB, C&F, and CIF from Ningbo port or other specified ports. Special competitive sea freight rates available for African and Middle Eastern countries.

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications for immediate pricing.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
