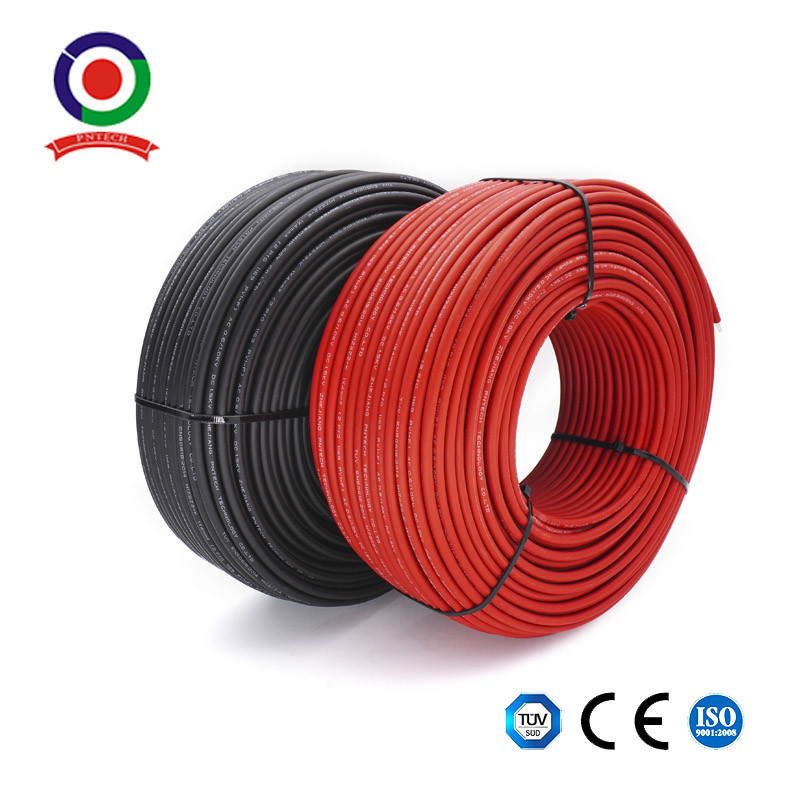

H1z2z2-K TUV 4mm² XLPO Solar Power Cable Wires AC1000V DC 1500V
Product Specifications
| Attribute |
Value |
| Product name |
Solar wire cable |
| Insulation |
XLPO |
| Packing |
250m/roll |
| Conductor |
Tinned copper |
| Structure |
56/0.285mm |
| Rated Voltage |
1KV AC / 1500V DC |
| Color |
Black and Red |
Product Description
H1z2z2-K TUV Approved 4mm² Solar Power Cable features excellent XLPO insulation with superior flame retardancy, abrasion resistance, and corrosion resistance. Ideal for installation on rooftops, RVs, trailers, ships, and recreational vehicles, these cables are designed for solar panels ranging from 50W to 600W.
The solar cable features an electrolytic annealed tinned copper conductor and a halogen-free black thermosetting rubber outer sheath, ensuring reliable performance in various environmental conditions.
Technical Specifications
| Type |
Cross section |
Wire structure |
Conductor diameter |
Outer diameter |
Conductor resistance |
Rated voltage |
Rated current |
| 1X2.5mm² |
2.5 |
48XΦ0.285 |
2 |
5.2 |
8.06 |
1000/1800 |
30 |
| 1X4.0mm² |
4 |
56XΦ0.285 |
2.6 |
5.9 |
5.09 |
1000/1800 |
50 |
| 1X6.0mm² |
6 |
84XΦ0.285 |
3.3 |
6.6 |
3.39 |
1000/1800 |
70 |
| 1X10mm² |
10 |
80XΦ0.40 |
4.4 |
8.3 |
2.12 |
1000/1800 |
95 |
Key Advantages
- Dual wall insulation with electron beam cross-linking
- Excellent resistance to UV, oil, greases, oxygen, and ozone
- Superior abrasion resistance and flexibility
- Halogen-free, flame retardant with low toxicity
- High voltage and current carrying capacity
- TUV approved for quality assurance
Solar cables offer exceptional durability with a lifespan of approximately 30 years, maintaining performance across various weather conditions and temperatures. They are ozone resistant, protected against ultraviolet rays, and feature low smoke emission with minimal toxicity and corrosivity in fire situations.

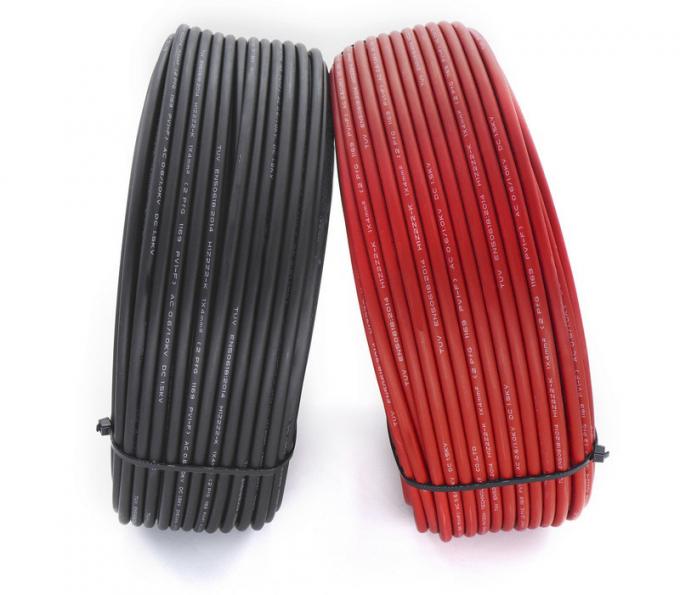

Product Image
Packaging & Delivery
Standard Export Package:
200m/roll or 1000m/roll on pallet or wooden drum
Delivery Information:
Delivery within 3-10 working days after order confirmation
Port: Ningbo, or other ports as per your requirements
Shipping options: FOB/C&F/CIF available
Frequently Asked Questions
1. When can I get the quotation?
Within 24 hours of receiving your inquiry. For urgent requests, please call with complete specifications for immediate pricing.
2. How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
3. What payment terms do you accept?
We accept T/T (bank transfer) and L/C.
4. Do you accept customized orders?
Yes, we accommodate customized orders.
5. Do you offer OEM & ODM services?
Yes, both OEM and ODM services are available.
