1500v Tinned Copper Terminal Connector For Pv Solar Series / Parallel Circuits 2 To 1
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||1500V 2to1 Branch||Rated Current||30A|
|Gender||Female And Male||Rated Voltage||1500VDC|
1500v Tinned Copper Terminal Connector,
Pv Solar Copper Terminal Connector,
Terminal Solar Parallel Connectors

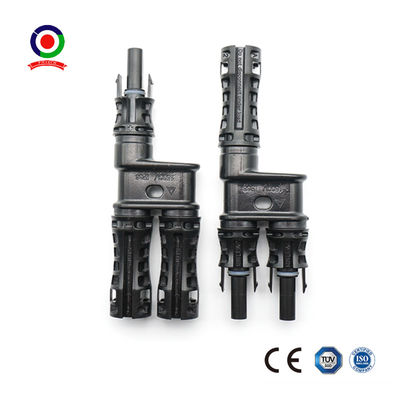

1500V tinned Copper Terminal in PV Solar Series or Parallel Circuits 2 to1 Branch
【T2 Branch Connector】1 male to 2 female(M/FF) and 1 female to 2 male(F/MM). It is compatible with solar connectors in 10AWG to 14AWG. It could be used for connecting two solar panels in parallel.
PPO as insulation material and tinned copper as conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.
With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
Adapter wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m
Insertion/extraction force: less or equal to 50N/equal or greater than 50N
Connector conductor material: copper, tin
Connector Insulation material: PPO
Operating temperature range: -40 - +90°C
|Product Name||2 to 1 T branch connector|
|voltage rating||≤DC 1500V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
Picture of 1500V Parallel Circuits 2 to1 Branch
