4mm2 Tinner Copper Dc Solar Cable Photovoltaic Flexible Electrical
|Product Name||4mm2 DC Cable||Rated Voltage||1500VDC|
|Conductor Material||Copper Tinned||Application||Power Station|
4mm2 dc solar cable,
tinner copper dc solar cable,
photovoltaic flexible dc solar cable
4mm2 Tinner Copper Photovoltaic Solar DC Electric Wire Flexible Electrical Cable
Wide temperature range: -40°F to 248°F (-40°C to 120°C), rated voltage is 600V, resistant to acid, alkali, oil and strong oxidation. Chemical, flame, aging, weather resistant and electrically insulating.
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
3. Marking:TUV SUD EN50618:2014 H1Z2Z2-K (CQC NB/T42073-2016 PV-YJYJ) DC 1.5KV 1x4.0mm 2 NINGBO PNTECH NEW ENERGY CO.,LTD.
4. Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
5. General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
|Type||Cross Section||Strand Design||Conductor Diameter||Conductor Resistance||Outer Diameter||Rated Voltage||Rated Current|
|H1Z2Z2-K 1x2.5mm2||2.5mm2||36x φ0.285mm||2.0mm||8.21 Ω/km||5.4mm||1500VDC||50A|
|H1Z2Z2-K 1x4mm2||4mm2||56x φ0.285mm||2.6mm||5.09 Ω/km||5.9mm||1500VDC||70A|
|H1Z2Z2-K 1x6mm2||6mm2||84x φ0.285mm||3.3mm||3.52 Ω/km||6.7mm||1500VDC||95A|
|H1Z2Z2-K 1x10mm2||10mm2||80x φ0.4mm||4.4mm||1.95 Ω/km||7.4mm||1500VDC||98A|
|H1Z2Z2-K 1x16mm2||16mm2||120x φ0.4mm||5.2mm||1.24 Ω/km||9.2mm||1500VDC||132A
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F|
|25,16 and 10, 6,4,2.5 mm2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

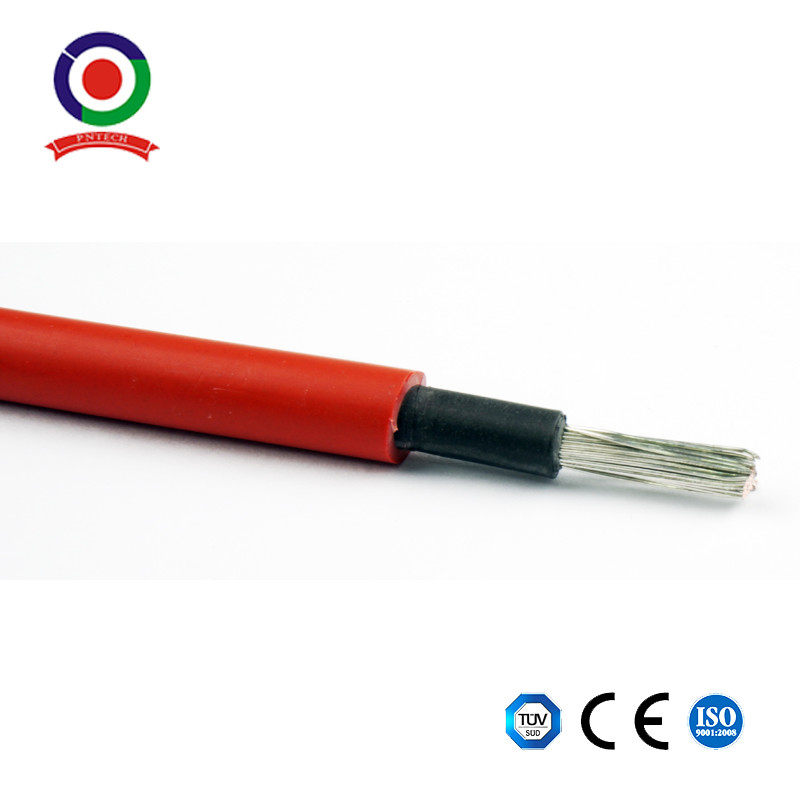

Picture of 4mm2 DC cable
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
