1000v 30a Pv Ip67 Solar Panel Parallel Connectors 1 Pair
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Y Branch Cable Wire Connector||Wire Length||35cm|
|Rated Voltage||1000VDC||Protection Degree||IP67|
|Rated Current||30A||Feature||High Temperature Resistant|
ip67 solar panel parallel connectors,
1000v 30a solar panel parallel connectors,
pv solar panel parallel connectors
PV Solar Panel Y Branch Cable Wire Connector 1000V 30A for PV Connectors 1Pair
Generally, the female MC4 connector is associated with the positive lead and the male connector is associated with the negative lead.【Solar Y-branch parallel connectors】Suitable for 14-10AWG (1.5mm²-6mm²) solar cables and most conventional solar connectors, except for amphenol connectors and other irregular types of connectors. Two solar panels can be connected in parallel, 1 male to 2 female (M/FF) and 1 female to 2 males (F/MM).
One pair of 1000V Solar 2 to 1 Y-Branch Connectors for solar panels. Includes both M/F/F and F/M/M. Used for parallel connection between panels and maintain the voltage of your panel configuration.
water proof and dust proof
Simple and quick installation
Compatible with all solar connectors
CE/TUV approved and Rohs compliant
|Connector||Connector name||Solar Connector|
|Rated voltage||1000V DC|
|Degree of protection||IP67|
|Temperature range||-40℃ ~ +110℃|
|Insertion force/withdrawal force||≤50N/≥50N|

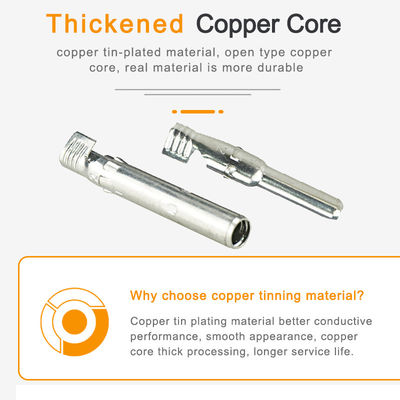

|Cable conductor||Tinned copper or bare copper|
|Cable Length||0.1m-10m Optional|
|function||UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance|
|Temperature Range||-40℃ ~ +90℃|
|Product warranty time||Return Policy: Provide within half of a month.|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. with the capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
Picture of Y Branch Cable Wire Connector
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
