T Type Branch 1 To 3 Cable Panel Mount Extension Solar Connector Male To Female

Place of Origin China
Brand Name Pntech
Certification CE/ISO9001
Model Number PV004-T3
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day
Product Details
Product Name Solar Connector Male To Female Gender Female And Male
Rated Voltage 1000VDC Protection Degree IP67
Rated Current 30A Color Black
High Light

Male Female Solar Y Branch Connectors


1to3 Solar Panel Branch Connectors


30A Solar Y Branch Connectors

Leave a Message
Product Description

T Type Branch 1 to 3 Cable Panel Mount Extension Solar Connector Male to Female


T Type Branch 1 To 3 Cable Panel Mount Extension Solar Connector Male To Female 0


Solar panel cable connectors with resistance of extra high & low temperature and fireproof. Guide insulator are installed on the contact head of the product, preventing electric shock. They are safe and reliable for connecting photovoltaic solar systems operation.The connector is certified by CE,Made of PPO materials and tin plated copper for better safety, better durability and high electrical conductivity.The Photovoltaic connector adopted of drum-shaped shrapnel Plug-way and unique fastening technology, It is easy to disassemble, simple and quick to connect, even more safe and secure. The male and female head swap woth a self-locking, electrical connections fully reliable, open and close freely. The material has excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, and meets the requirement of the outdoor long-term use under harsh environmental conditions. The features include excellent sealing performance, waterproof and dustproof rating up to IP67. It also has broad applicability to be inserted with the and match each other completely.


Main parameter
Product Name branch solar connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition


Assembly Instructions


1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

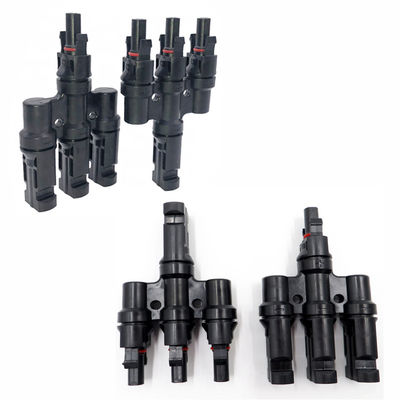

Picture of Solar Connector Male to Female


T Type Branch 1 To 3 Cable Panel Mount Extension Solar Connector Male To Female 1




1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
