CE 3 To 1 T Branch Connectors Cable Coupler Combiner M/3F And F/3M
|Product Name||3 To1 T Branch Connectors||Gender||Female And Male|
|Rated Voltage||1000VDC||Protection Degree||IP67|
F/3M Solar Panel T Connector,
M/3F Solar Panel Parallel Connectors,
F/3M Solar Panel Parallel Connectors
CE 3 to1 T Branch Connectors Cable Coupler Combiner (M/3F and F/3M)
All the solar panel cable connectors are made of excellent professional photovoltaic insulation plastic material. The connector is certified by CE,Made of PPO materials and tin plated copper for better safety, better durability and high electrical conductivity.The Photovoltaic connector adopted of drum-shaped shrapnel Plug-way and unique fastening technology, It is easy to disassemble, simple and quick to connect, even more safe and secure. The male and female head swap woth a self-locking, electrical connections fully reliable, open and close freely. The material has excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, and meets the requirement of the outdoor long-term use under harsh environmental conditions. The features include excellent sealing performance, waterproof and dustproof rating up to IP67. It also has broad applicability to be inserted with the and match each other completely.
|Product Name||branch solar connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

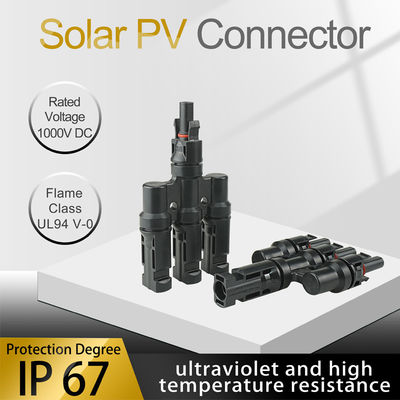

Picture of 3 to1 T Branch Connectors
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
