1000v Tinned Copper Terminal In Pv Solar Series Or Parallel Circuits 2 To 1 Branch

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-T2

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

1000v Branch Connector

,

1000v Solar Branch Connector

,

Solar Branch Connector 1000v

Product Name:
Parallel Circuits 2to1 Branch
Rated Current:
30A
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Product Name:
Parallel Circuits 2to1 Branch
Rated Current:
30A
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Description
1000v Tinned Copper Terminal In Pv Solar Series Or Parallel Circuits 2 To 1 Branch

1000V tinned Copper Terminal in PV Solar Series or Parallel Circuits 2to1 Branch



1000v Tinned Copper Terminal In Pv Solar Series Or Parallel Circuits 2 To 1 Branch 0



Solar Branch Connectors are used for parallel connection between solar panels(PV modules). And it will maintain the voltage of your panel configuration to match your battery size. Sold as a pair. The connectors are only compatible with Solar connectors and it comes with one male (MMF) and one female (FFM) connection.

PPO as insulation material and tinned copper as conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.



With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.



Adapter wire: OD4.5-7.0 (2.5-4.0mm2)

Connector contact resistance: 0.5m

Insertion/extraction force: less or equal to 50N/equal or greater than 50N

Connector conductor material: copper, tin

Connection: crimp

Connector Insulation material: PPO

Operating temperature range: -40 - +90°C



Main parameter
Product Name  2 to 1 T branch connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated


Advantage



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

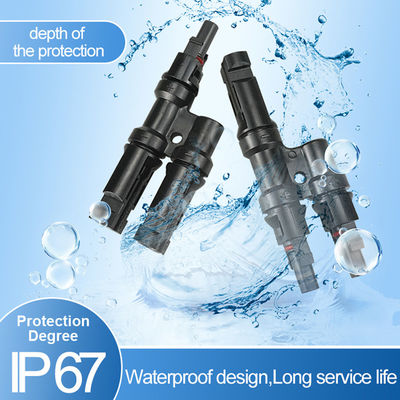

Picture of Parallel Circuits 2to1 Branch
