1 Pair 3T1 Y Branch Solar Panel Parallel Connectors

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-3T1

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

1 Pair Solar Panel Parallel Connectors

,

3T1 Solar Panel Parallel Connectors

,

3T1 Y Branch Connector

Product Name:
Solar Panel Connectors
Cable Material:
XLPO
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Flame Class:
UL94-V0
Product Name:
Solar Panel Connectors
Cable Material:
XLPO
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Flame Class:
UL94-V0
Description
1 Pair 3T1 Y Branch Solar Panel Parallel Connectors

1Pair 3T1 Y Branch Connector Parallel Adapter Wire Plug Tool Kit for Solar Panel



Double seal rings for better waterproof and dustproof effect, it can be used in harsh environment, will survived rain, high force winds and snow.This package includes one pair of 1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM) solar panel kit tool dual connector plug, it is compatible with mc4 connectors for solar panels and solar combiner box in 10 awg to 14 awg. This 3 way connector kit could be used for connecting upto three solar panels in parallel.



- 1 Pair of Y Type Male/Female Solar Panel Cable Connectors(one female to double male (F/MMM) and one male to double female (M/FFF)
- Compatible
- Compatible with PV cables with different insulation diameters
- It can be used in harsh environment
- With excellent aging resistance and UV endurance
- Created seal, design of dust proof
- Load capability with big current and high voltage
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
- Strong pulling force capability
- Resistance of extra high & low temperature and fireproof
- Lower contact resistance



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1000V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPE
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



Picture of Solar Panel Connectors

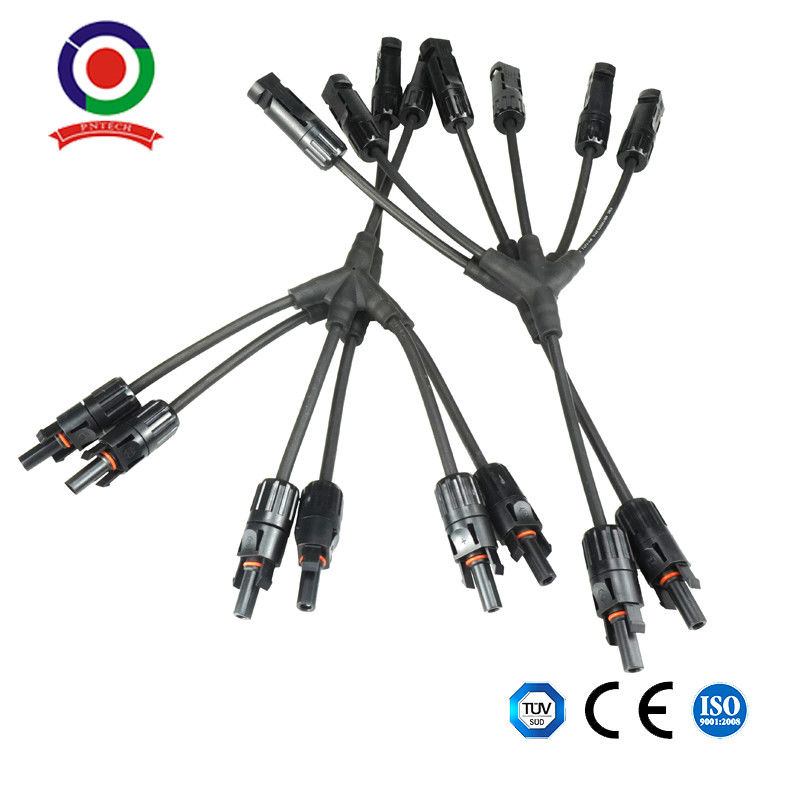

1 Pair 3T1 Y Branch Solar Panel Parallel Connectors 0



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
