1T4 Y Branch M/FFFF F/MMMM Solar Panel Parallel Connectors

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-4T1

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

F/MMMM Solar Panel Parallel Connectors

,

M/FFFF Solar Panel Parallel Connectors

,

1T4 Y Branch Solar Connectors

Product Name:
Solar Panel Connectors Y Branch 1 To 4
Color:
Black
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Portable
Product Name:
Solar Panel Connectors Y Branch 1 To 4
Color:
Black
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Portable
Description
1T4 Y Branch M/FFFF F/MMMM Solar Panel Parallel Connectors

Solar Panel Connectors Y Branch 1 to 4 Parallel Adapter M/FFFF and F/MMMM Fit



1T4 Y Branch M/FFFF F/MMMM Solar Panel Parallel Connectors 0



There is a built - in lock in each male connector, you just need to press your fingers to the two sides of the built-in lock on the male connector, then you can connect or disconnect the connector easily, without using other tool. The connection will work stably with this built-in lock.
Safety - Solar Y branch Connectors with resistance of extra high & extra low temperature and fireproof. You do not have to worry about whether the photovoltaic solar system can operate safely and reliably.

With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1000V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPO
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage:



This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together
The Y Solar Cable Connector Set includes one Y style cable connector one female to double male (F/M/M) and one Y style cable connector one male to double female (M/F/F)
Electron-beam cross-linked compounds UV and ozone resistant
Hydrolysis resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Long life cycle



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

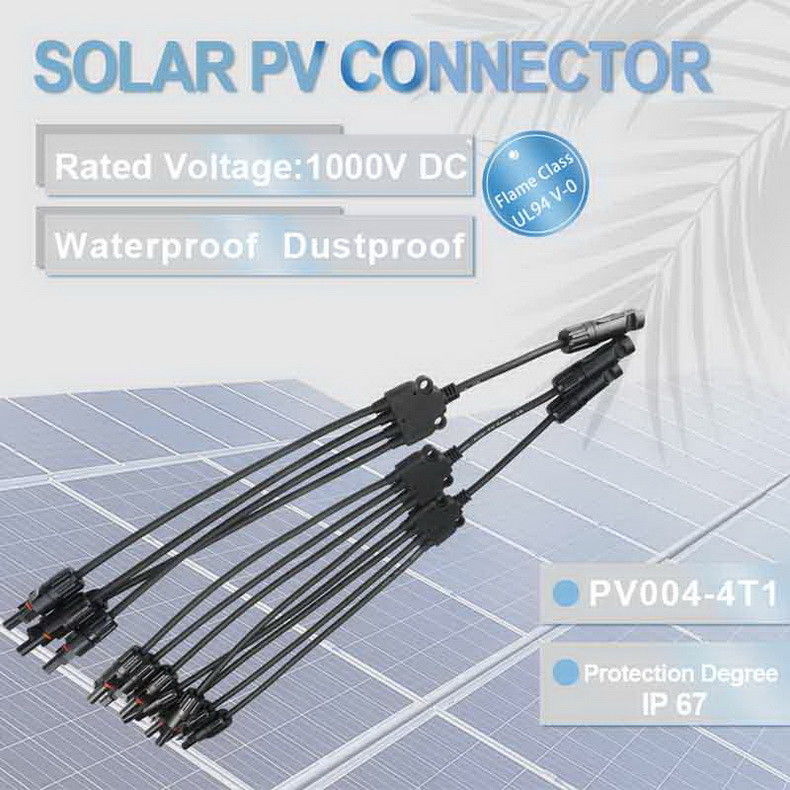

Picture of Solar Panel Connectors Y Branch 1 to 4
