1 Pair PPO 4 Way Y Branch Connector For Solar Panel
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||4-way Y-branch Adaptors||Color||Black|
|Rated Voltage||1000VDC||Protection Degree||IP67|
4 Way Y Branch Connector,
PPO Y Branch Connector,
4 Way Solar Panel Connectors
1 Pair of 4-to-1 solar cable connectors 4-way Y-branch adaptors for solar panels
The connector is waterproof and dust-proof with the IP67 waterproof ring in the male connector. Made with quality PPO material, certified by CE and TÜV, this solar Y branch connector is resistant to the aging and UV, which can work stably from -40℉ to 190℉. It is safe and durable that works outdoors.
Fast and reliable quick and convenient to use, the outer casing is strong anti-aging and ultraviolet resistance.All the solar panel cable connectors are made of excellent professional photovoltaic insulation plastic material. Double seal rings for better waterproof and dustproof effect, the waterproof level up to IP67. Also with excellent aging resistance and UV endurance, can be used in harsh environment..
Safety - Solar Y branch Connectors with resistance of extra high & extra low temperature and fireproof. You do not have to worry about whether the photovoltaic solar system can operate safely and reliably.
With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;
|Connector||Connector name||Solar Connector|
|Rated voltage||1000V DC|
|Degree of protection||IP67|
|Temperature range||-40℃ ~ +110℃|
|Insertion force/withdrawal force||≤50N/≥50N|
|Cable conductor||Tinned copper or bare copper|
|Cable Length||0.1m-10m Optional|
|function||UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance|
|Temperature Range||-40℃ ~ +90℃|
|Product warranty time||Return Policy: Provide within half of a month.|
This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together
The Y Solar Cable Connector Set includes one Y style cable connector one female to double male (F/M/M) and one Y style cable connector one male to double female (M/F/F)
Electron-beam cross-linked compounds UV and ozone resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Long life cycle
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

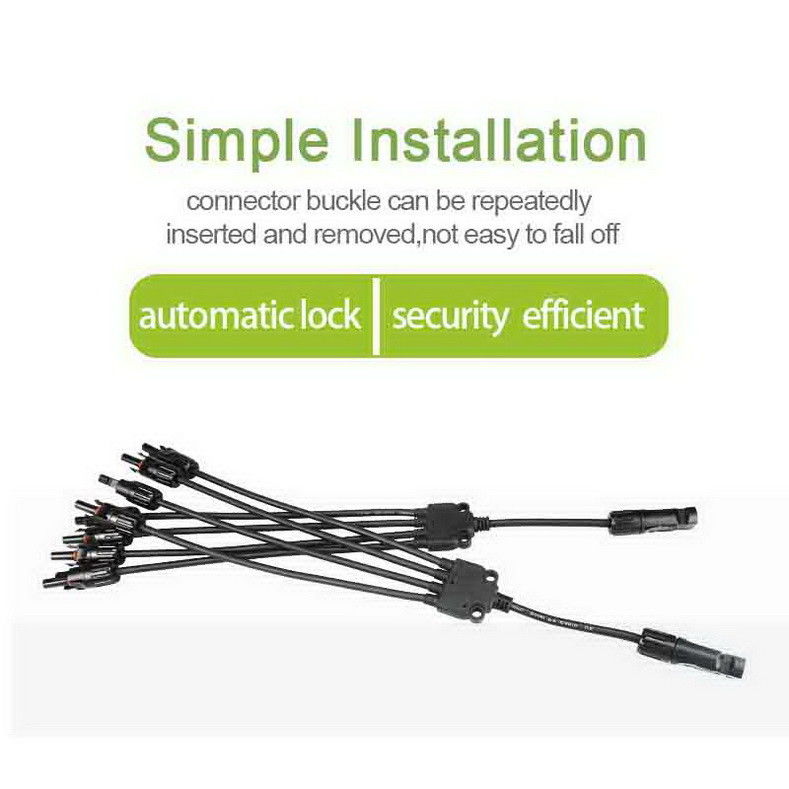

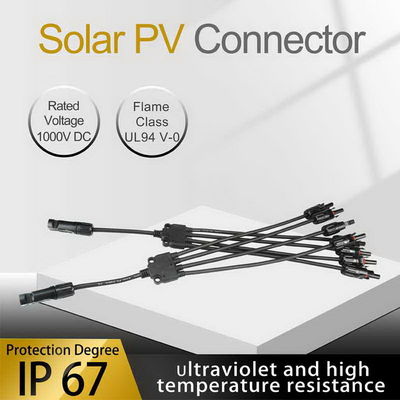

Picture of 4-way Y-branch adaptors
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. Price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
