1 Pair Y Branch Solar Panel 30A Cable Connector FFM MMF PV Wire T Splitter

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-4T1

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

30a solar panel y connector

,

FFM solar panel y connector

,

30a y connector solar

Product Name:
4 To 1 Y Branch Connector
Connector:
1 Male To 4 Female And 1 Female To 4 Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Waterproof
Product Name:
4 To 1 Y Branch Connector
Connector:
1 Male To 4 Female And 1 Female To 4 Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Waterproof
Description
1 Pair Y Branch Solar Panel 30A Cable Connector FFM MMF PV Wire T Splitter

1 Pair Y-Branch Solar Panel 30A Cable Connector FFM,MMF,PV Wire T-Splitter New



1 Pair Y Branch Solar Panel 30A Cable Connector FFM MMF PV Wire T Splitter 0


1 Pair Y Branch Solar Panel 30A Cable Connector FFFFM MMMMF PV Wire T Splitter
This Y-branch is compatible with connector, solar photovoltaic module in parallel
Distributed system is fast and reliable, waterproof and dustproof, fast and convenient to use
Strong anti-aging ability, anti-UV shell, stable male and female connectors with stable automatic lock

Double seal rings for better waterproof and dustproof effect, it can be used in harsh environment, will survived rain, high force winds and snow.

With excellent aging resistance and UV endurance, guide insulator are installed on the contact head of the product, preventing electric shock. They are safe and reliable for connecting



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1000V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPE
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

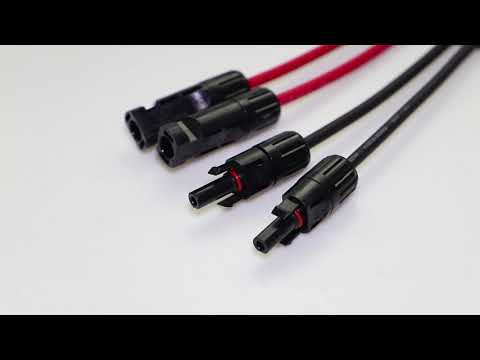

Picture of 1 Pair Y-Branch Solar Panel 30A Cable Connector1 Pair Y Branch Solar Panel 30A Cable Connector FFM MMF PV Wire T Splitter 1

1 Pair Y Branch Solar Panel 30A Cable Connector FFM MMF PV Wire T Splitter 2

FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
