Solar Panel T Branch PV Connectors Male Female Adapter Cable For Solar Panel
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||T Type Compatible 5 To 1 Branch Connector||Cable Size||2.5 4 6mm2|
|Rated Voltage||1000VDC||Protection Degree||IP67|
|Rated Current||30A||Packing||1pair Per Pp Bag|
solar pv branch connector,
1000VDC solar branch connector,
2.5mm2 solar branch connector
Solar Panel T Branch PV Connectors Male + Female Adapter Cable For Solar Panel
5 in 1 Solar Panel T branch connectors - 1 male to 4 female(M/FFFFF) and 1 female to 5 male(F/MMMMM), compatible with 14AWG--10AWG solar connectors.
IP67 Waterproof - Solar cable connectors has a waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. The stable self-locking system which is easy to lock and open.
High Security - Solar Panel Wiring Connectors made of CE certified PPO material, good material makes sure the transmission in a stable situation. Contact Material: Copper, silver plated..
Protection Class: Class II; Temperature Range: -40℉--190℉; Withstanding voltage: 1000V DC(TUV), 600V(UL); Flame Class: UL94-V0 or UL94-5VA.
|Product Name||branch connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

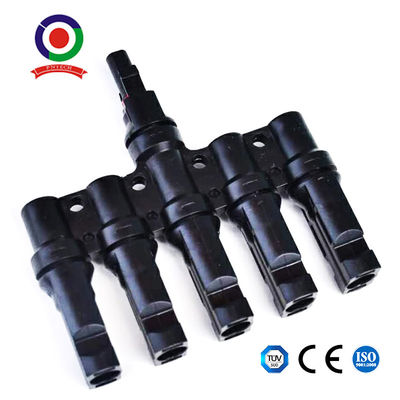

Picture of T Branch PV Connector male + female
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
