Electrical Pv Photovoltaic T Branch Connector Parallel Connection Ce 30a
|Product Name||T Branch Parallel Connection||Contact Resistance||1mΩ|
|Protection Degree||IP67||Rated Current||30A|
parallel connection t branch connector,
photovoltaic t branch connector,
ce 30a solar parallel connectors
CE 30A Electrical PV Photovoltaic solar Connector T Branch parallel connection
Quick and simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Pair of PV Branch Connectors: Provides a quick and easy parallel wiring solution for solar panels.
Connected by riveting - Quick & simple assembly processing and simple removal of plugs.We use the highest quality materials in our production, which is why our solar branch connectors are heavier and better quality than other similar products on the market, and can be used for a long time without failure.
|Product Name||4 to 1 T branch solar connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
These 4 to 1 branch connectors allowed me to connect my three panels in parallel instead. Three pairs of 10AWG cables to the box. System is running fine so far. I also placed these branch connectors inside a weatherproof irrigation box and placed it under the panels on the roof. That just added one more layer of protection to keep all these connections dry and hopefully working well for years.
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

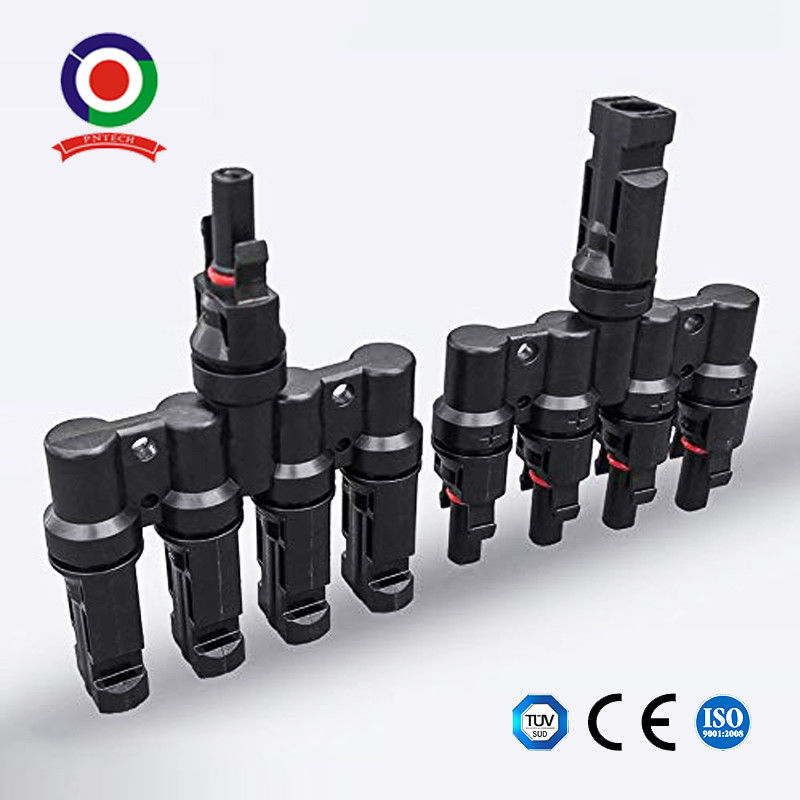

Picture of T Branch parallel connection
