CE Solar Branch 1 To 4 Y Connector Kit Parallel Connection Between Solar Panels

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-T4

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
High Light:

CE y branch connector

,

y branch connector CE

,

Y solar parallel connectors

Product Name:
Solar Branch Connector
Contact Resistance:
1mΩ
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Packing:
PP Bag
Product Name:
Solar Branch Connector
Contact Resistance:
1mΩ
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Packing:
PP Bag
Description
CE Solar Branch 1 To 4 Y Connector Kit Parallel Connection Between Solar Panels

CE Solar Branch 1 to 4 Y Connector Kit Parallel Connection Between Solar Panels



CE Solar Branch 1 To 4 Y Connector Kit Parallel Connection Between Solar Panels 0



Solar Branch Connectors are used for parallel connection between solar panels(PV modules). Perfectly compatible with photovoltaic solar systems. Sold as a pair - It comes with one male (MMF) and one female (FFM) connection.



Main parameter
Product Name 4 to 1 T branch solar connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated


These 4 to 1 branch connectors allowed me to connect my three panels in parallel instead. Three pairs of 10AWG cables to the box. System is running fine so far. I also placed these branch connectors inside a weatherproof irrigation box and placed it under the panels on the roof. That just added one more layer of protection to keep all these connections dry and hopefully working well for years.



Advantage



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

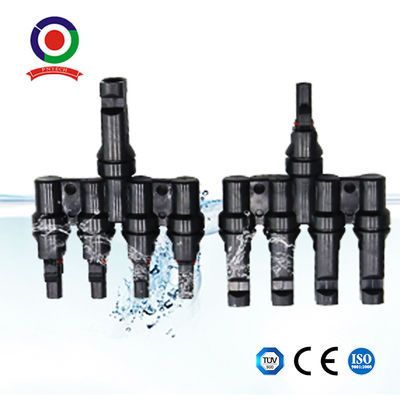

Picture of 1 to 4 Solar Y Branch Connector

CE Solar Branch 1 To 4 Y Connector Kit Parallel Connection Between Solar Panels 1

FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
