Tuv Ce Solar Panel Lead Red Black Pv Cable Dc Rated 4mm² Comp Plugs Crimp Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 4mm² Comp PLUGS Crimp Wire | Insulation | XLPO |
|---|---|---|---|
| Packing | 100m/roll | Conductor | Tinned Copper |
| Struction | 56/0.285mm | Rate Voltage | 1KV AC 1500V DC |
| Color | Black And Red | ||
| High Light | dc 4mm solar panel cable,ce 4mm solar panel cable,tuv 4mm solar panel cable |
||
Product Description
TUV CE Solar Panel lead RED BLACK PV Cable DC Rated 4mm² comp PLUGS Crimp Wire
Our cables are made from flexible tinned copper with a halogen-free copolymer insulation and a UV stable halogen-free copolymer sheath.Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter.
The cable is ozone-resistant according to EN50618, UV-resistant according to UNE-HD 605:2008 (HD605/A1), tested for durability according to EN 60216 and designed to last 25 years.
| TYPE | Cross section | Wire struct | Conductor diameter | Outer diameter | Conductor resistance | Rated voltage | Rated current |
| mm2 | No.OD (mm) | mm | mm | Ω/Km | V AC/DC | A | |
| 1X2.5mm2 | 2.5 | 48XΦ0.285 | 2 | 5.2 | 8.06 | 1000/1800 | 30 |
| 1X4.0mm2 | 4 | 56XΦ0.285 | 2.6 | 5.9 | 5.09 | 1000/1800 | 50 |
| 1X6.0mm2 | 6 | 84XΦ0.285 | 3.3 | 6.6 | 3.39 | 1000/1800 | 70 |
| 1X10mm2 | 10 | 80XΦ0.40 | 4.4 | 8.3 | 2.12 | 1000/1800 | 95 |
| 2X2.5mm2 | 2.5 | 48XΦ0.25 | 2 | 6.2*9.90 | 8.06 | 1000/1800 | 30 |
| 2X4.0mm2 | 4 | 56XΦ0.30 | 2.6 | 6.9*11.30 | 4.97 | 1000/1800 | 50 |
| 2X6.0mm2 | 6 | 81XΦ0.30 | 3.3 | 7.1*14.50 | 3.52 | 1000/1800 | 70 |
Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.
Advantage:
· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.

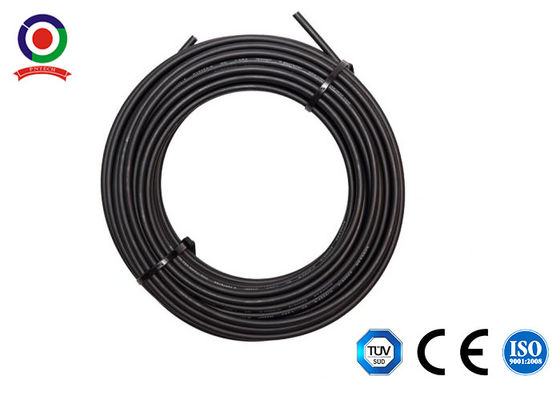

Photo of PV 4mm2 solar plug crimp wire
Packing:
Standard Export package:
200m/roll,1000m/roll on the pallet or wooden drum
Delivery:
Within 3-10 working Days once Order Confirmed
Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
