1KV Photovoltaic Cable 6mm2 Solar Power Wire Tuv For Pv Panels Connection Red Black

Name: 1KV Photovoltaic Cable 6mm2 Solar Power Wire Tuv For Pv Panels Connection Red Black
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            photovoltaic 6mm2 solar cable, tuv 6mm2 solar cable, 1KV 6mm2 solar cable


Product Name:	6mm2 Solar Power Wire	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	6mm2 Solar Power Wire
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

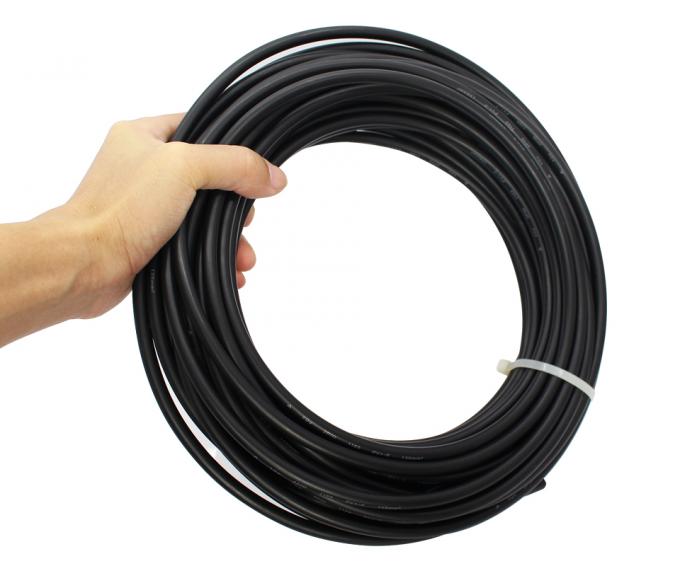

1KV Photovoltaic Cable 6mm2 Solar Power Wire Tuv For Pv Panels Connection Red Black

1KV Photovoltaic Cable 6mm² Solar Power Wire TUV for PV Panels Connection (Red/Black)

Product Specifications

Attribute	Value
Product name	6mm² Solar Power Wire
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC / 1500V DC
Color	Black and Red

Product Description

Our 6mm² solar power wire is a high-performance photovoltaic cable designed for PV panel connections, featuring dual insulation and TUV certification for reliable solar energy applications.

Key Features

Low smoke emission and minimal toxicity in fire conditions
Ozone-resistant (EN50618) and UV-resistant (UNE-HD 605:2008)
Durability tested (EN 60216) with 25+ year lifespan
H1Z2Z2-K certified single pole, double insulated design
Environmentally friendly with recyclable materials

Technical Specifications

Parameter	Value
Cross-Section	1x6mm²
Rated Temperature	-40°C to +90°C
Rated Voltage	DC: 1/1.8kV / AC: 0.6kV
Rated Current	41-98A
Weather Resistance	Sun resistant

Detailed Specifications

Type	Cross Section	Wire Structure	Conductor Diameter	Outer Diameter	Conductor Resistance	Rated Voltage	Rated Current
1X4.0mm²	4	56XΦ0.285	2.6mm	5.5mm	5.09Ω/Km	1000/1800V	50A
1X6.0mm²	6	84XΦ0.285	3.3mm	6.1mm	3.39Ω/Km	1000/1800V	70A
1X10mm²	10	80XΦ0.40	4.4mm	7.2mm	2.12Ω/Km	1000/1800V	95A

Product Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance and flexibility
Halogen-free, flame retardant with low toxicity
Optimized stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Packaging & Delivery

Standard Packaging: 200m/roll or 1000m/roll on pallet/wooden drum

Delivery Time: 3-10 working days after order confirmation

Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports

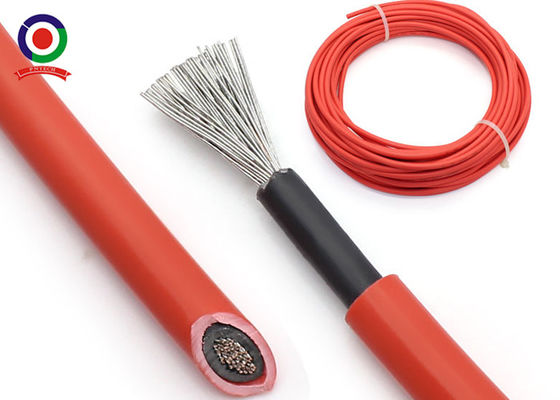

6mm² Solar Power Cable - Red and Black PV Wire

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
