Tuv 50 Meters 4mm2 12awg Photovoltaic Wire Solar Wire Red Or Black Pv Cable

Name: Tuv 50 Meters 4mm2 12awg Photovoltaic Wire Solar Wire Red Or Black Pv Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            50 meters pv cable 4mm2, 12awg pv cable 4mm2, 12awg 4mm pv cable


Product Name:	Red Or Black PV Cable	Insulation:	XLPO
Packing:	250m/roll	Conductor:	Tinned Copper
Struction:	56/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Red Or Black PV Cable
Insulation:	XLPO
Packing:	250m/roll
Conductor:	Tinned Copper
Struction:	56/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Tuv 50 Meters 4mm2 12awg Photovoltaic Wire Solar Wire Red Or Black Pv Cable

TUV 50 Meters 4mm² 12AWG Photovoltaic Wire Solar Wire Red or Black PV Cable

Product Specifications

Attribute	Value
Product name	Red or Black PV Cable
Insulation	XLPO
Packing	250m/roll
Conductor	Tinned copper
Structure	56/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

This TUV-certified 4mm² (12AWG) photovoltaic wire is designed specifically for solar applications, featuring durable construction and superior performance characteristics.

DC cables are engineered to withstand steady DC voltage with optimized insulation thickness. Compared to AC cables of equivalent nominal voltage, they offer more efficient power transmission with reduced insulation requirements.

Technical Features

Ozone-resistant (EN50618 compliant)
UV-resistant (UNE-HD 605:2008 compliant)
Durability tested (EN 60216 compliant)
25-year design lifespan
Operating temperature range: -40°C to 90°C
Weather resistant with excellent sun protection

Technical Specifications

Type	Cross section	Wire structure	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X4.0mm²	4	56XΦ0.285	2.6mm	5.5mm	5.09Ω/Km	1000/1800V	50A
1X6.0mm²	6	84XΦ0.285	3.3mm	6.1mm	3.39Ω/Km	1000/1800V	70A
1X10mm²	10	80XΦ0.40	4.4mm	7.0mm	2.12Ω/Km	1000/1800V	95A

Key Advantages

Dual wall insulation with electron beam cross-linking
Exceptional resistance to UV, oil, greases, oxygen, and ozone
Superior abrasion resistance for long-term durability
Halogen-free, flame retardant with low toxicity
Excellent flexibility and stripping performance
High voltage and current carrying capacity
TUV certified for quality assurance

Solar cables offer environmental benefits with 30-year durability across various weather conditions. They feature UV protection, low smoke emission, minimal toxicity, and flame resistance while meeting modern environmental recycling standards.

Packaging & Delivery

Standard packaging: 250m/roll, 1000m/roll on pallet or wooden drum

Delivery time: 3-10 working days after order confirmation

Shipping options: FOB/C&F/CIF available from Ningbo or other specified ports

Product Image

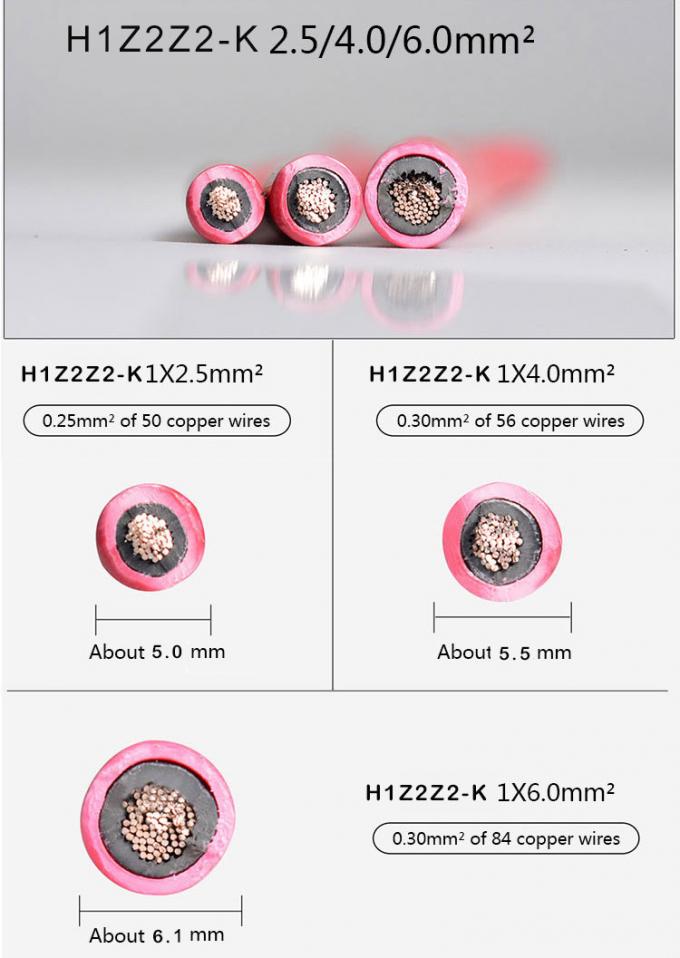

TUV certified 4mm² 12AWG photovoltaic solar cable

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
