CE Approved 1000V 2 In 1 Solar Panel IP67 T Branch Connector

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-T2

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now

IP67 T Branch Connector


1000v T Branch Connector


CE Approved t connector solar

Product Name:
2 In 1 Solar T Branch Connector
Rated Current:
Female And Male
Rated Voltage:
Protection Degree:
Product Name:
2 In 1 Solar T Branch Connector
Rated Current:
Female And Male
Rated Voltage:
Protection Degree:
CE Approved 1000V 2 In 1 Solar Panel IP67 T Branch Connector


CE Approved 1000V IP67 2 in 1 solar T Branch Connector for solar panel




The connector is certified by TÜV, made with PPO material, the contact is made with copper silver plated. Quality material makes sure that it can keep working stably from minus 40℉ to 190℉.

The stable self-locking system which is easy to lock and open.
EASY USE: Press your fingers to the either sides of the built-in lock on the male connector can disconnect

the connector easily, without using other tool.

SOLAR Y BRANCH CONNECTORS: 1 male to 2 female(M/FF) and 1 female to 2 male(F/MM), it is compatible

with solar connectors in 10AWG to 14AWG, it could be used for connecting two solar panels in parallel.
WATERPROOF AND DURABLE: An IP67 waterproof ring on the male connector is perfect that seal out water

and dust to prevent it from corrosion. The connector is stable and safe with the built-in lock which is

durable outdoors.


With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.


Adapter wire: OD4.5-7.0 (2.5-4.0mm2)

Connector contact resistance: 0.5m

Insertion/extraction force: less or equal to 50N/equal or greater than 50N

Connector conductor material: copper, tin

Connection: crimp

Connector Insulation material: PPO

Operating temperature range: -40 - +90°C


Main parameter
Product Name  2 to 1 T branch connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition


Assembly Instructions


1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

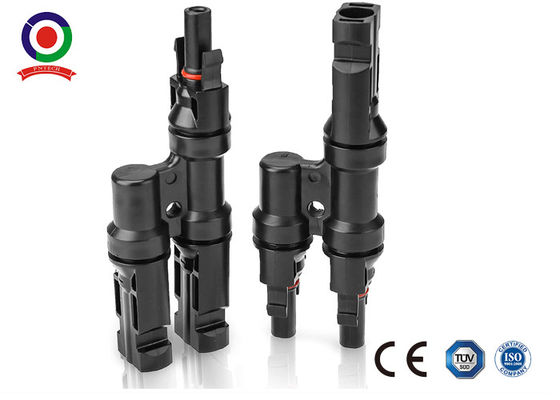

Picture of 2 in1  Solar T branch connector MMF FFM

CE Approved 1000V 2 In 1 Solar Panel IP67 T Branch Connector 0



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
