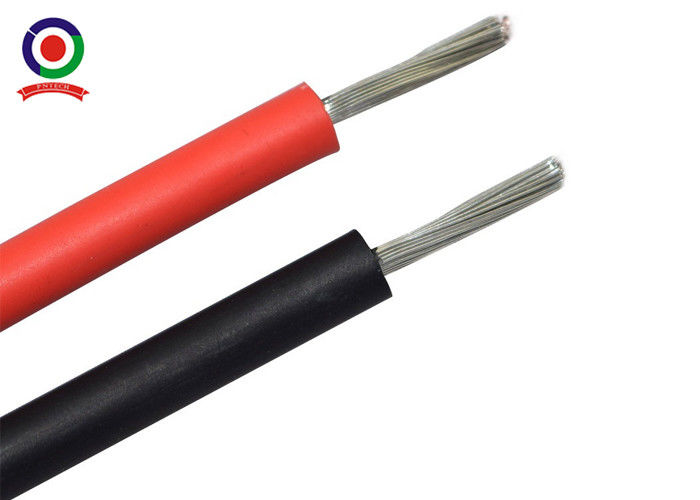

DC Rated Black Red 6mm² 1500V Double Insulated Solar Pv Cable

Name: DC Rated Black Red 6mm² 1500V Double Insulated Solar Pv Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            dc1500v solar pv cable, dc solar panel cable 6mm, 6mm solar pv cable


Product Name:	Solar Panel PV Cable DC Rated Black Red 6mm²	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar Panel PV Cable DC Rated Black Red 6mm²
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

DC Rated Black Red 6mm² 1500V Double Insulated Solar Pv Cable

DC Rated Black Red 6mm² 1500V Double Insulated Solar PV Cable

Product Specifications

Attribute	Value
Product name	Solar Panel PV Cable DC Rated Black Red 6mm²
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rate Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Black & Red flexible tinned copper solar cable with Halogen-free Copolymer Insulation and UV stable Halogen-free Copolymer sheath. Designed for optimal performance in solar energy applications.

Key Features

Inner Conductor: Flexible Tinned Copper Wire
Dielectric: LSZH Halogen Free Copolymer
UV Resistant LSZH Halogen Free Copolymer
Color: BLACK / RED
Storage/Operating Temperature: -40°C to +90°C
Minimum Installation Temperature: -5°C

Technical Specifications

TYPE	Cross section	Wire struct	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X2.5mm2	2.5	48XΦ0.285	2	4.9	8.06	1000/1800	30
1X4.0mm2	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm2	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm2	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Product Advantages

Dual wall insulation. Electron beam cross-linked

Excellent resistance to U.V, oil, greases, oxygen and ozone

Excellent resistance to abrasion

Halogen free, flame retardant, low toxicity

Excellent flexibility and stripping performance

High Voltage and Current carrying capacity

TUV approved

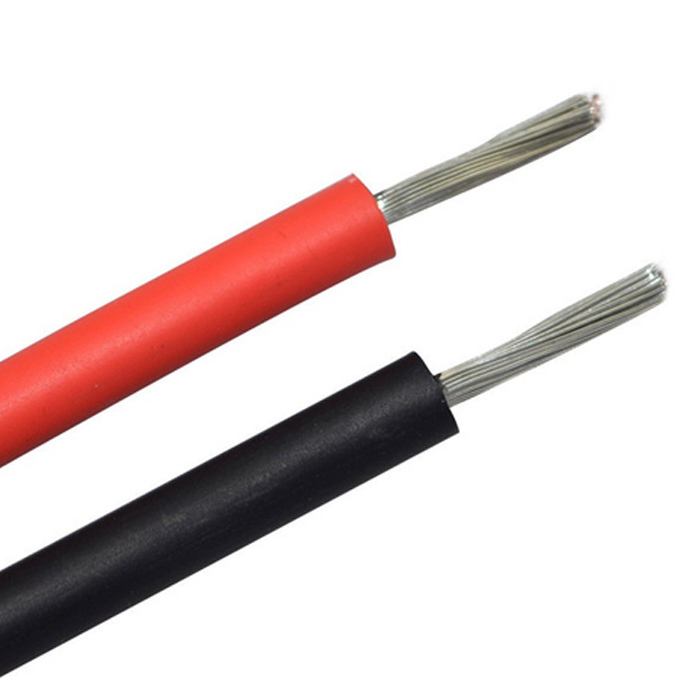

Product Image

Packaging Information

Standard Export package: 200m/roll, 1000m/roll on the pallet or wooden drum

Delivery Information

Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

For more information about our solar cables, please visit our website.
