Dc Rated 4mm² Solar Connector Crimp Odm Solar Panel Wire Red Black

Name: Dc Rated 4mm² Solar Connector Crimp Odm Solar Panel Wire Red Black
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 500m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            odm solar panel wire, 4mm solar panel wire, dc solar panel cable 4mm


Product Name:	Solar 4mm2 Cable 12AWG	Insulation:	XLPO
Packing:	250m/roll	Conductor:	Tinned Copper
Struction:	56/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar 4mm2 Cable 12AWG
Insulation:	XLPO
Packing:	250m/roll
Conductor:	Tinned Copper
Struction:	56/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Dc Rated 4mm² Solar Connector Crimp Odm Solar Panel Wire Red Black

DC Rated 4mm² Solar Connector Crimp ODM Solar Panel Wire Red Black

Product Specifications

Attribute	Value
Product name	Solar 4mm2 cable 12AWG
Insulation	XLPO
Packing	250m/roll
Conductor	Tinned copper
Structure	56/0.285mm
Rate Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our premium solar PV cables feature flexible tinned copper conductors with halogen-free copolymer insulation and UV-stable halogen-free copolymer sheath. These TUV-Rheinland approved cables meet the highest industry standards for solar applications.

Technical Specifications

TYPE	Cross section	Wire struct	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X4.0mm2	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm2	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm2	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Features

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

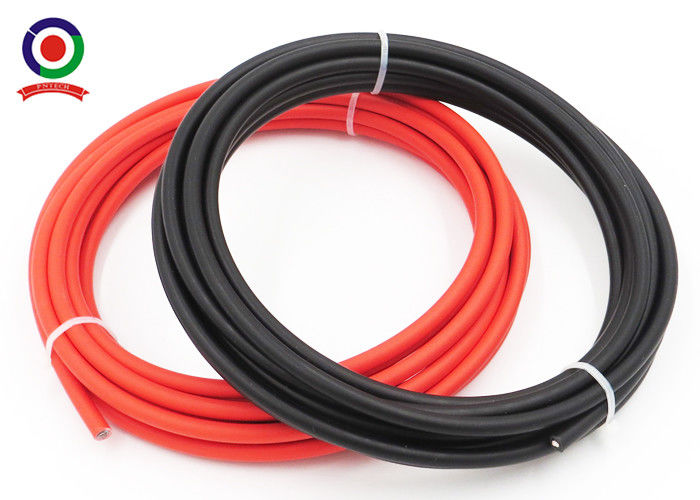

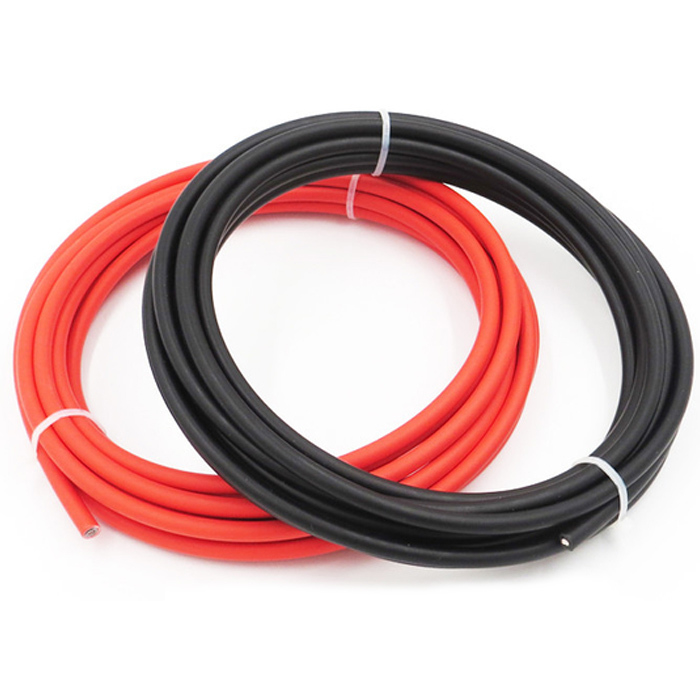

Product Image

Packaging & Delivery

Standard packaging options include 200m/roll or 1000m/roll on pallets or wooden drums. Delivery typically occurs within 3-10 working days after order confirmation. We offer flexible shipping options including FOB, C&F, and CIF from Ningbo or other specified ports.

Frequently Asked Questions

When can I get the quotation?

We provide quotations within 24 hours of receiving your inquiry. For urgent requests, please contact us directly with complete specifications.

How long is the delivery time?

Standard delivery occurs within 3-4 working days after payment, depending on order quantity.

What payment terms do you accept?

We accept T/T (bank transfer) and L/C payments.

Do you accept customized orders?

Yes, we accommodate both customized orders and OEM/ODM requests.
