16AWG 30A 2 To 1 Y Parallel Adapter Cable Solar Branch Connector
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||2 To 1 Y Branch Connector||Weight||0.15kg|
|Rated Voltage||1000VDC||Protection Degree||IP67|
|Rated Current||30A||Color||Black And Red|
Solar Branch Connector 30A,
16AWG Solar Branch Connector,
30A 2 to 1 Y Branch Parallel Adapter Cable Solar Panel Wire Plug Solar Connector
30A higher current and high voltage load capacity, and obtained CE certification. Quality assurance and long service life. Y branch solar panel cable connectors is made of high-quality PC and PPO materials, anti-oxidation, UV resistance and high temperature resistance.
- Y Branch parallel Connector 1 male to 2 female(M/FF) and 1 female to 2 male(F/MM)
- Double seal rings for better waterproof effect. Compatible with PV cables with different insulation diameters. It can be used in harsh environment, it will survived rain, high force winds and snow
- With excellent aging resistance and UV endurance. Created seal, design of dust proof. Load capability with big current and high voltage
- Resistance of extra high & low temperature and fireproof
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
|Connector||Connector name||Solar Connector|
|Rated voltage||1000V DC|
|Degree of protection||IP67|
|Temperature range||-40℃ ~ +110℃|
|Insertion force/withdrawal force||≤50N/≥50N|
|Cable conductor||Tinned copper or bare copper|
|Cable Length||0.1m-10m Optional|
|function||UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance|
|Temperature Range||-40℃ ~ +90℃|
|Product warranty time||Return Policy: Provide within half of a month.|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

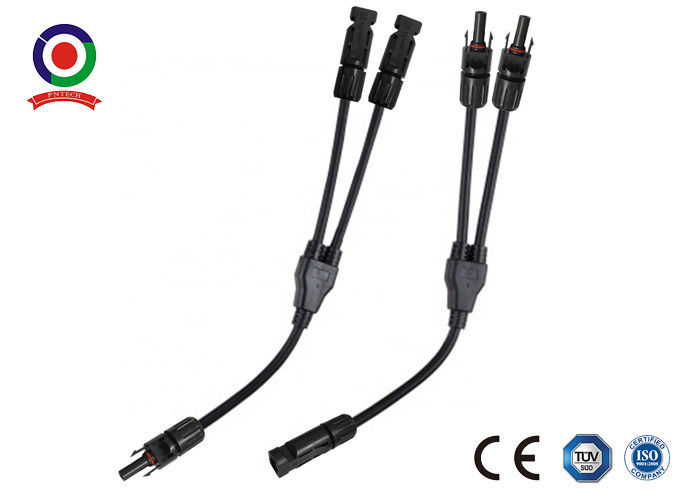

Picture of 2 to 1 Y Branch Connector
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
