Customized XLPO Insulated TUV Single Core PV Cable Wire Solar Cable 6mm

Name: Customized XLPO Insulated TUV Single Core PV Cable Wire Solar Cable 6mm
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            TUV 6mm single core cable, 6mm single core cable, Insulated 6 single core cable


Product Name:	PV Solar 6mm2 Cable	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	PV Solar 6mm2 Cable
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Customized XLPO Insulated TUV Single Core PV Cable Wire Solar Cable 6mm

Product Specifications

Attribute	Value
Product name	PV Solar 6mm² cable
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our TÜV approved solar cables are designed for the interconnection of various elements in photovoltaic systems. These cables meet rigorous standards including ozone resistance (EN50618), UV resistance (UNE-HD 605:2008), and durability testing (EN 60216), with a design life of 25 years.

The H1Z2Z2-K 1x6mm² is a single pole, double insulated 6mm² tinned copper wire available in 200m lengths. These solar cables provide a safe, durable, and environmentally friendly power solution resistant to various environmental impacts.

Technical Specifications

Type	Cross section	Wire structure	Conductor diameter	Outer diameter	Conductor resistance	Rated voltage	Rated current
1X2.5mm²	2.5	48XΦ0.285	2.0mm	4.9mm	8.06Ω/Km	1000/1800V	30A
1X4.0mm²	4.0	56XΦ0.285	2.6mm	5.5mm	5.09Ω/Km	1000/1800V	50A
1X6.0mm²	6.0	84XΦ0.285	3.3mm	6.1mm	3.39Ω/Km	1000/1800V	70A
1X10mm²	10.0	80XΦ0.40	4.4mm	7.2mm	2.12Ω/Km	1000/1800V	95A

Key Features

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen, and ozone
Superior abrasion resistance
Halogen free, flame retardant, with low toxicity
Excellent flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Our solar cables offer exceptional durability (30+ years), weather resistance, and environmental safety. They feature low smoke emission, minimal toxicity, and flame resistance while meeting modern environmental regulations. Color-coded options enable easy identification during installation.

Packaging & Delivery

Standard Packaging: 200m/roll or 1000m/roll on pallets or wooden drums

Delivery Time: 3-10 working days after order confirmation

Shipping Options: FOB/C&F/CIF available from Ningbo or other specified ports

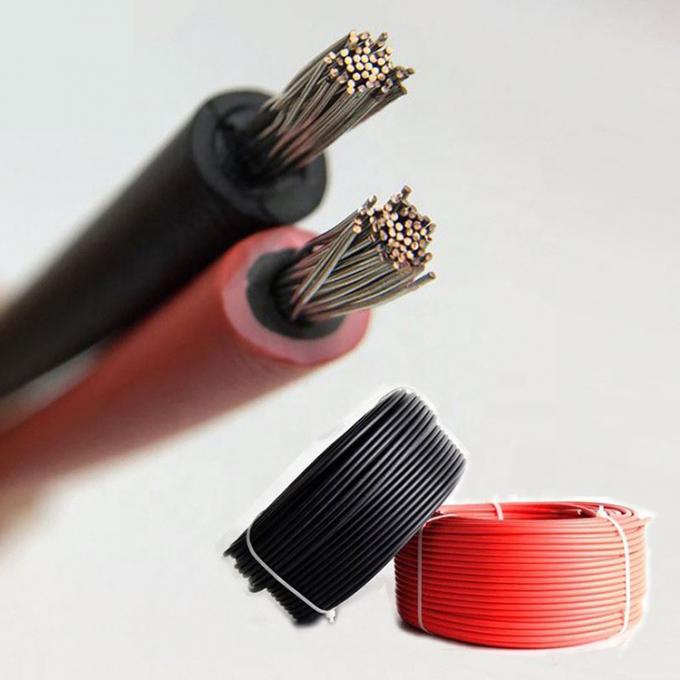

Product Image

For more information about our solar cable products, please visit our website.
