UV Resistance Fire Resistance Solar Photovoltaic Installation Extension Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

30A extending solar panel cable

,

6mm2 extending solar panel cable

,

6mm2 extending solar cable

Product Name:
Solar Photovoltaic Installation Extension Cable
Cable Size:
2.5, 4, 6mm2
Rated Voltage:
1000VDC
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Product Name:
Solar Photovoltaic Installation Extension Cable
Cable Size:
2.5, 4, 6mm2
Rated Voltage:
1000VDC
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Description
UV Resistance Fire Resistance Solar Photovoltaic Installation Extension Cable



UV Resistance Fire Resistance Solar Photovoltaic Installation extension Cable



Solar cable Description



 Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.

General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat,cold,oil,abrasion,ozone,UV and weather; with improved reaction in case of fire .


Connector



1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.



Specification Condstruction (n * mm2)
2.5mm2 4.0mm2 6.0mm2 10.0mm2
Rating Voltage: 1500V
Conductor Conductor structure Class 5 Tinned copper conductor
Material Tinned copper wire(TXR)
Number of wires in conductor 50/0.28 56/0.28 84/0.28 142/0.28
Insulation Material Polyolefin copolymer electron-beam cross-linked
Insulation OD(mm) 3.85 4 4.6 6.5
Color Black
Sheath Material Polyolefin copolymer electron-beam cross-linked
Sheath OD(mm) 5.4 5.8 6.6 8
Color Black/Red
Max. Resistance AC20oC ohm/ km 8.21 5.09 3.39 1.95
60oCA Ampacity (60oCA)(A) 41 55 70 98
Environmetal temperature -40℃~90℃
Application standards EN H1Z2Z2-K
Length (Meter) Optional 1 meters/3 meters/5 meters/10 meters


Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

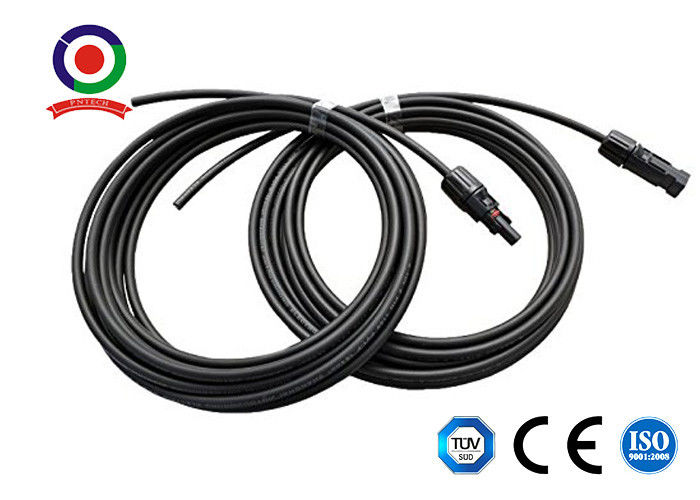

Picture of Solar Photovoltaic Installation extension Cable
