TUV EN50618 1500V Dc 20m 40m Length 4mm2 Solar Panel Extension Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

4mm2 Solar Panel Extension Cable

,

TUV Solar Panel Extension Cable

,

en 50618 solar cable

Product Name:
Dc Solar Cable Extension Cable
Packing:
PP Bag
Solar Cable Type:
4mm
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black/Red
Product Name:
Dc Solar Cable Extension Cable
Packing:
PP Bag
Solar Cable Type:
4mm
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black/Red
Description
TUV EN50618 1500V Dc 20m 40m Length 4mm2 Solar Panel Extension Cable



TUV EN50618 1500V dc solar cable extension cable 20m,40m customized length 4mm2



Solar cable Description



Don't feel bad if you're confused by the solar extension cables. If you've never worked with solar modules before, they can be a little intimidating. First of all, they're expensive. Nobody wants to purchase an expensive cable and later find out the length is too short after it's been cut. Cut cables cannot be returned, so we want to be sure you fully understand how to choose the appropriate length and how to use them to connect your panels together.



56/.28 (4.0mm2) Tinned Annealed Copper
XLPE Insulated. 0.6/1KV core.
630/1000Vdc SOLAR Cable oversheathed with XLPO
Oxygen Free Copper. RoHS Compliant XLPO



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.28 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.28 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.28 3.3 3.39 7.1 1000/1800 70 95


Connector



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in
Product No. DC-DC
Rated voltage TUV 1000V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PPC
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

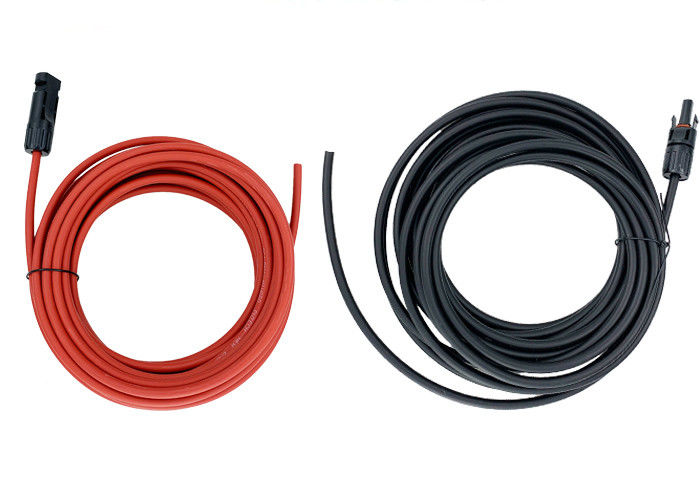

Picture of DC Solar cable Extension Cable 4mm2
