Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: DC-00
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Product Name: |
PV Extension Cable Wire |
Cable: |
10AWG |
Rated Voltage: |
1000VDC |
Degree Of Protection: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Product Name: |
PV Extension Cable Wire |
Cable: |
10AWG |
Rated Voltage: |
1000VDC |
Degree Of Protection: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
10AWG Male & Female Solar Panel Connectors Adapter PV Extension Cable Wire
Description
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
We can provide the cables as well as connectors linked with the cable;
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery.
Hard plastic connectors at each end
Female and male connectors
Black wire sunlight resistant cable
Extends and locks built-in cables
TUV tested cable
UV resistant and waterproof
Cable description:
1. Temperature range for application -40°C up to 90°C, max.temperature at conductor 120°C
2. Electron beam cross-linked material does not melt or flow at high temperatures
3. The permitted short-circuit-temperature refer to a period of 5s is 200°C
4. High resistance against UV,ozone and hydrolysis
5. Flexible,easy to strip
6. Dual wall insulation.Electron beam cross-linked
7. Excellent resistance to U.V,oil,greases,oxygen and ozone
8. Excellent resistance to abrasion
9. Halogen free, flame retardant,low toxicity
10. Excellent flexibility and stripping performance
11. High current carring capacity
Connector
Rate voltage: | 1000v |
Rated current: | 22A(2.5mm2) , 30A(4mm2,6mm2) |
Test voltage: | 6KV(50Hz) |
Protect degree: | IP67/IP2X |
Insulation material: | PC/PA/PPO/TPE |
Contact material: | Silver plated copper |
Operating temperature: | -40°C~+90°C |
Safe class: | 2 |
Flame class: | UL94-V0 |
Contact resistance of plug connectors: | ≤5mΩ |
Insertion force: | ≤50N |
Withdraw force: | ≥50N |
Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
Locking system: | Snap in |
Product No. | DC-DC |
Rated voltage | TUV 1000V DC |
Rated current | 30A |
Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
Terminal size | Φ4.0mm |
Test voltage | DC 8KV 1min |
Pollution degree | 2 |
Protection class | Class II |
Terminal Material | Tinned copper |
Contact resistance | ≤ 5mΩ |
Insulation Materials | PPC |
IP rating | IP67(IEC 60529) |
Pull-out force | ≥ 50N |
Insertion Force | ≤ 50N |
Test temperature | -40ºC~ +85ºC |
Flame Class | UL94V - 0 |
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

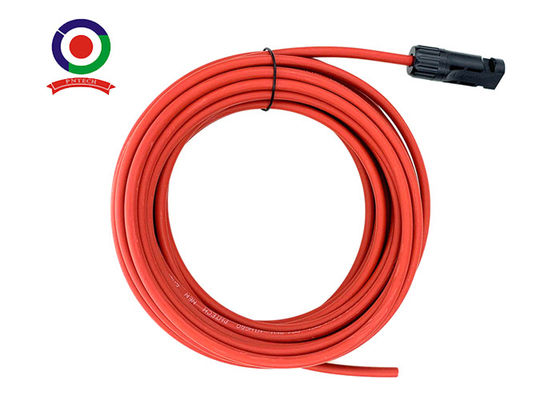

Picture of PV Extension Cable Wire
