Product Name: |
4mm Solar Cable |
Rated Voltage: |
1500VDC |
Temperature: |
-40°C-- 90°C |
Packing: |
250m/roll |
Conductor Material: |
Copper Tinned |
Application: |
Power Station |
Product Name: |
4mm Solar Cable |
Rated Voltage: |
1500VDC |
Temperature: |
-40°C-- 90°C |
Packing: |
250m/roll |
Conductor Material: |
Copper Tinned |
Application: |
Power Station |
TUV Ce XLPO Tinned Copper DC 1.5KV H1Z2Z2-K Solar Panel 4mm Solar Cable
Specificate
A DC cable only has to resist the steady measured DC voltage and therefore has a certain thickness. An AC cable of the same nominal voltage, has to resist peak to peak voltage, which is about 1.414 times the equivalent DC voltage. Therefore, I would assume its insulation would be thicker.
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
3. Marking:TUV SUD EN50618:2014 H1Z2Z2-K (CQC NB/T42073-2016 PV-YJYJ) DC 1.5KV 1x4.0mm 2 NINGBO PNTECH NEW ENERGY CO.,LTD.
4. Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
5. General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
H1Z2Z2-K 1x2.5mm2 | 2.5mm2 | 36x φ0.285mm | 2.0mm | 8.21 Ω/km | 5.4mm | 1500VDC | 50A |
H1Z2Z2-K 1x4mm2 | 4mm2 | 56x φ0.285mm | 2.6mm | 5.09 Ω/km | 5.9mm | 1500VDC | 70A |
H1Z2Z2-K 1x6mm2 | 6mm2 | 84x φ0.285mm | 3.3mm | 3.52 Ω/km | 6.7mm | 1500VDC | 95A |
H1Z2Z2-K 1x10mm2 | 10mm2 | 80x φ0.4mm | 4.4mm | 1.95 Ω/km | 7.4mm | 1500VDC | 98A |
H1Z2Z2-K 1x16mm2 | 16mm2 | 120x φ0.4mm | 5.2mm | 1.24 Ω/km | 9.2mm | 1500VDC | 132A |
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Name | PV Cable |
The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
Flame retardant, cutting resistance and penetration resistance. | |
Cable protection level Ⅱ level. | |
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
It conforms to ROHS, and the insulation resistance is small after immersion. | |
Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
Cable structure | Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
25,16 and 10, 6,4,2.5 mm2 PV wire | |
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
Sheath: low smoke and halogen free material thickness > 0.5mm. | |
Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

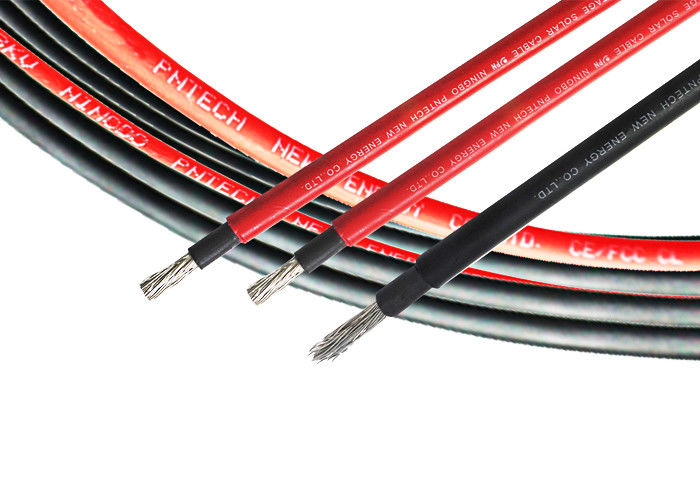

Picture of 4mm2 DC cable
