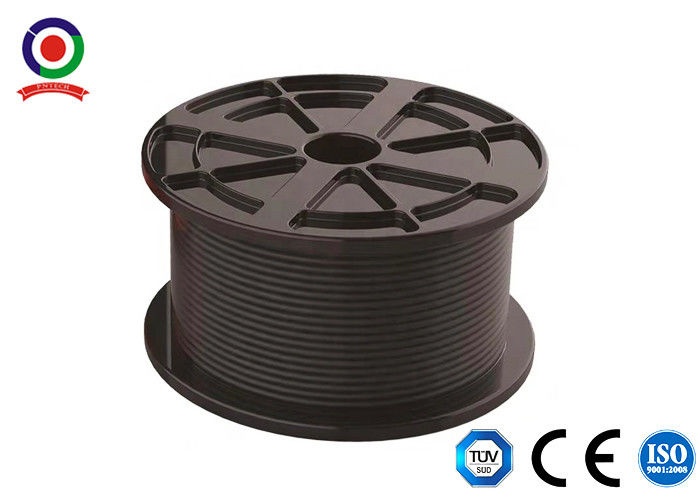

Electric TUV RoHS UV Resistant 6mm Photovoltaic Cable 10AWG
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar DC Cable 10AWG||Cross Section||10AWG|
|Struction||84/0.285mm||Rate Voltage||1KV AC 1500V DC|
|Color||Black And Red|
6mm Photovoltaic Cable,
10AWG Photovoltaic Cable,
RoHS Photovoltaic Cable
Electric TUV/RoHS H1Z2Z2-K UV Resistant 6mm PV/PV1-F Wire Solar DC Cable 10AWG
Photovoltaic Solar H1Z2Z2-K Cable. Black, Unshielded, Single core. Intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, but not direct burial applications.
Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.
Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.
Rated temperature: -40~90C
Rated Rating:DC:1/1.8kv AC:0.6kv
Rated Current: 41~98A
Weathering Resistance: Sun Res
|TYPE||Cross section||Wire struct||Conductor diameter||Outer diameter||Conductor resistance||Rated voltage||Rated current|
|mm2||No.OD (mm)||mm||mm||Ω/Km||V AC/DC||A|
· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.
Standard Export package:
200m/roll,1000m/roll on the pallet or wooden drum
Within 3-10 working Days once Order Confirmed
Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
Photo of DC solar wires 6mm2
