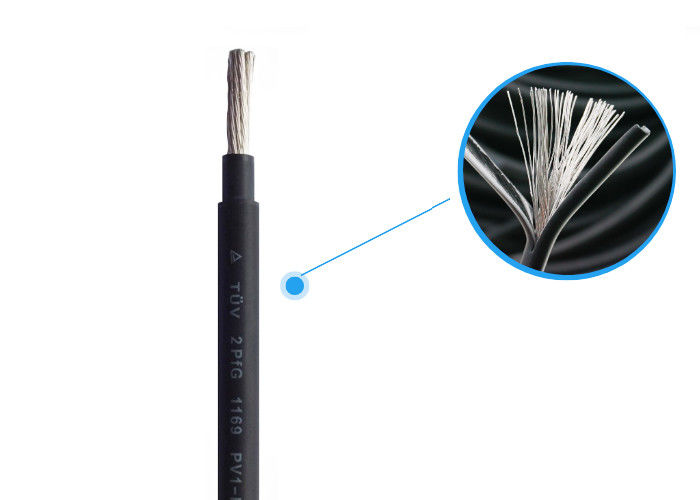

Tinned Stranded Copper XLPE Insulated 6mm2 Solar PV Cable

Name: Tinned Stranded Copper XLPE Insulated 6mm2 Solar PV Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6mm2 Solar PV Cable, XLPE Insulated Solar PV Cable, Solar PV 6mm2 Cable


Product Name:	Wire DC PV Solar 6mm2	Insulation:	XLPO
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Wire DC PV Solar 6mm2
Insulation:	XLPO
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Tinned Stranded Copper XLPE Insulated 6mm2 Solar PV Cable

Tinned Stranded Copper XLPE Insulated 6mm² Solar PV Cable

Product Specifications

Attribute	Value
Product name	Wire DC PV Solar 6mm²
Insulation	XLPO
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Our Tinned Stranded Copper XLPO Insulated Solar PV Cable is specifically designed for photovoltaic systems, offering superior performance and durability in demanding environmental conditions.

Solar cables must withstand impact, abrasion, and tear while maintaining a minimum bending radius not exceeding 4 times the overall diameter. With a safe pulling force of 50 N/mm², our cables feature cross-linked insulation that provides excellent resistance to thermal and mechanical stress, making them ideal for both outdoor and indoor applications.

Technical Specifications

Cross-Section: 1x6mm²
Rated temperature: -40°C to 90°C
Rated Voltage: DC 1.8kV / AC 0.6kV
Rated Current: 41-98A
Weather Resistance: Sun Resistant

Type	Cross Section (mm²)	Wire Structure	Conductor Diameter (mm)	Outer Diameter (mm)	Conductor Resistance (Ω/Km)	Rated Voltage (V AC/DC)	Rated Current (A)
1X2.5mm²	2.5	48XΦ0.285	2	4.9	8.06	1000/1800	30
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen, and ozone
Superior abrasion resistance
Halogen-free, flame retardant with low toxicity
Exceptional flexibility and stripping performance
High voltage and current carrying capacity
TUV approved for quality assurance

Our solar cables offer exceptional durability with a lifespan of approximately 30 years, maintaining performance across various weather conditions and temperatures. The UV-resistant, low-smoke emission design meets modern environmental regulations while ensuring safety and easy identification through color coding.

Packaging Information

Standard Export Package:
200m/roll or 1000m/roll on pallet or wooden drum

Delivery Details

Delivery within 3-10 working days after order confirmation
Shipping Port: Ningbo or other specified ports
Available Shipping Terms: FOB, C&F, CIF
*Special competitive sea freight rates available for Africa and Middle East countries

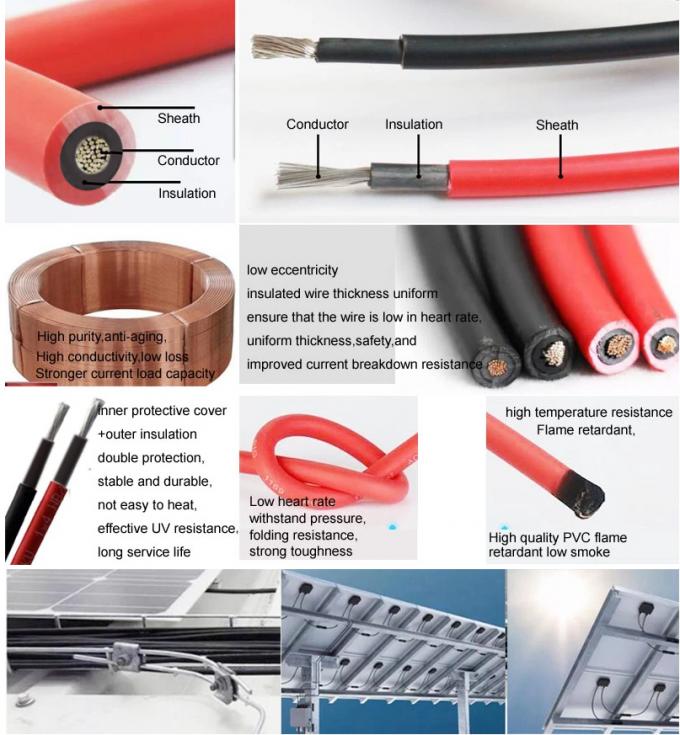

6mm² DC Solar PV Cable on spool showing detailed construction
