TUV CE 6mm Single Core Solar Cable XLPO Insulation Pv Wire

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price
Contact Now
Specifications
Highlight:

6mm Single Core Solar Cable

,

TUV Single Core Solar Cable

,

CE Single Core Solar Cable

Product Name:
Solar Wires Cables
Insulation:
XLPO
Sheath:
XLPO
Conductor:
Tinned Copper
Struction:
84/0.285mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Product Name:
Solar Wires Cables
Insulation:
XLPO
Sheath:
XLPO
Conductor:
Tinned Copper
Struction:
84/0.285mm
Rate Voltage:
1KV AC 1500V DC
Color:
Black And Red
Description
TUV CE 6mm Single Core Solar Cable XLPO Insulation Pv Wire
TUV CE 6mm Single Core Solar Cable XLPO Insulation PV Wire
Product Specifications
Attribute Value
Product name Solar wires cables
Insulation XLPO
Sheath XLPO
Conductor Tinned copper
Structure 84/0.285mm
Rated Voltage 1KV AC 1500V DC
Color Black and Red
Product Description

TUV CE dual certificate 6mm single core solar cable with XLPO insulation PV wire designed for optimal performance in solar energy systems.

Solar cables are engineered to resist impact, abrasion, and tear with a minimum bending radius not exceeding 4 times the overall diameter. They feature a safe pulling force of 50 N/sqmm and insulation that withstands thermal and mechanical loads. The cross-linked plastic construction ensures durability in severe weather conditions, making them suitable for both outdoor and indoor (dry conditions) use.

These double-insulated flexible PV cables feature fine multi-stranded tinned copper conductors for corrosion resistance and UV-resistant outer insulation. Commercial solar PV panels over 50 watts typically use 10 gauge (AWG) wires, allowing up to 30 amps of current flow from a single panel.

Technical Parameters

Cross-Section: 1x6mm²
Rated temperature: -40°C to 90°C
Rated Voltage: DC: 1/1.8kV, AC: 0.6kV
Rated Current: 41-98A
Weather Resistance: Sun resistant

Detailed Specifications
Type Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
1X4.0mm² 4 56XΦ0.28 2.6mm 5.5mm 5.09Ω/Km 1000/1800V 50A
1X6.0mm² 6 84XΦ0.28 3.3mm 6.1mm 3.39Ω/Km 1000/1800V 70A
1X10mm² 10 80XΦ0.40 4.4mm 7.2mm 2.12Ω/Km 1000/1800V 95A
Key Advantages
  • Dual wall insulation with electron beam cross-linking
  • Excellent resistance to UV, oil, greases, oxygen, and ozone
  • Superior abrasion resistance
  • Halogen-free, flame retardant with low toxicity
  • Exceptional flexibility and stripping performance
  • High voltage and current carrying capacity
  • TUV approved for quality assurance

Solar cables offer exceptional durability lasting approximately 30 years, withstanding various weather conditions and temperatures while remaining ozone resistant. They provide protection against ultraviolet rays and feature low smoke emission, minimal toxicity, and reduced corrosivity in fire situations. Their flame-resistant properties, easy installation, and recyclability make them environmentally friendly, while color-coding enables quick identification.

Packaging Information

Standard Export Package: 200m/roll or 1000m/roll on pallet or wooden drum

Delivery Details

Delivery within 3-10 working days after order confirmation
Port: Ningbo, or other ports as required
Sea freight options: FOB/C&F/CIF quotations available
Note: For certain regions including Africa and Middle East countries, our sea freight rates are often more competitive than local shipping agencies

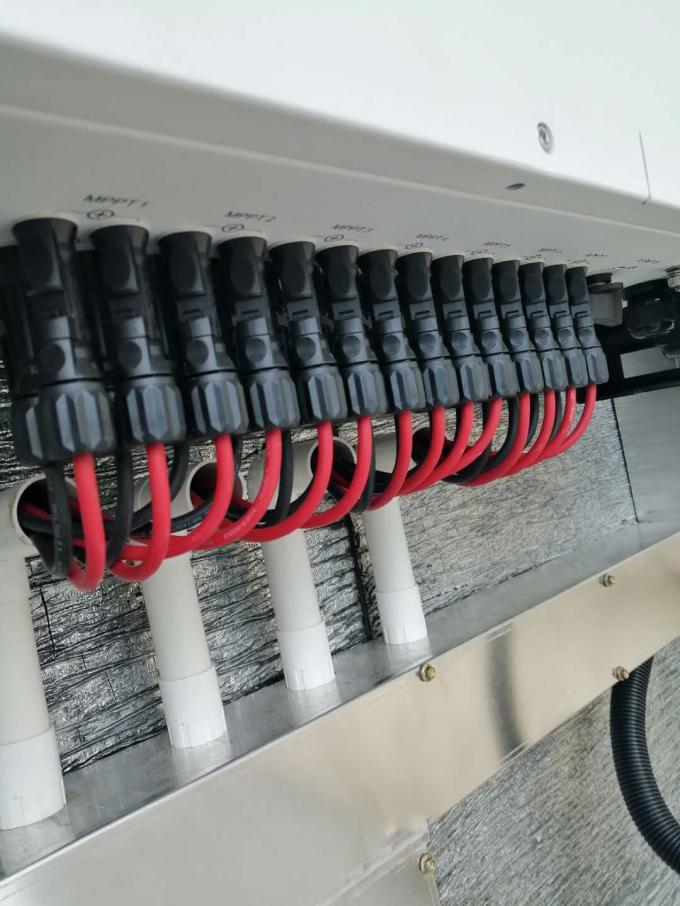

Product Image
6mm² DC Solar Wires

For more information about our solar cable products, visit our solar cables page.
