XLPO Insulated 1x6mm2 Single Core Electrical Cable High Current 70A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | XLPO Insulated PV Cable | Insulation | XLPO |
|---|---|---|---|
| Sheath | XLPO | Conductor | Tinned Copper |
| Struction | 84/0.285mm | Rate Voltage | 1KV AC 1800V DC |
| Core | Single Core | Color | Black And Red |
| High Light | 1x6mm2 single core electrical cable,70A single core electrical cable,XLPO single core electrical cable |
||
Product Description
XLPO Insulated Single Core Electrical Cable 1x6mm2 High Current 70A
Description:
Cross-linked Polyolefin, also referred to as XLPO, is a form of insulation that is created through both heat and high pressure. The most important attribute of XLPO is that it is halogen free. The importance of a halogen free cable is one that it will not emit toxic gases when exposed to fire.
The free encyclopedia. A DC connector (or DC plug, for one common type of connector) is an electrical connector for supplying direct current (DC) power. Compared to domestic AC power plugs and sockets, DC connectors have many more standard types that are not interchangeable.
Cross-Section: 1x6mm2
Rated temperature: -40~90C
Rated Rating:DC:1/1.8kv AC:0.6kv
Rated Current: 41~98A
Weathering Resistance: Sun Res
Specification:
| TYPE | Cross section | Wire struct | Conductor diameter | Outer diameter | Conductor resistance | Rated voltage | Rated current |
| mm2 | No.OD (mm) | mm | mm | Ω/Km | V AC/DC | A | |
| 1X2.5mm2 | 2.5 | 48XΦ0.285 | 2 | 5.2 | 8.06 | 1000/1800 | 30 |
| 1X4.0mm2 | 4 | 56XΦ0.285 | 2.6 | 5.9 | 5.09 | 1000/1800 | 50 |
| 1X6.0mm2 | 6 | 84XΦ0.285 | 3.3 | 6.6 | 3.39 | 1000/1800 | 70 |
| 1X10mm2 | 10 | 80XΦ0.40 | 4.4 | 8.3 | 2.12 | 1000/1800 | 95 |
| 2X2.5mm2 | 2.5 | 48XΦ0.25 | 2 | 6.2*9.90 | 8.06 | 1000/1800 | 30 |
| 2X4.0mm2 | 4 | 56XΦ0.30 | 2.6 | 6.9*11.30 | 4.97 | 1000/1800 | 50 |
| 2X6.0mm2 | 6 | 81XΦ0.30 | 3.3 | 7.1*14.50 | 3.52 | 1000/1800 | 70 |
Advantage:
· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
Packing:
Standard Export package:
200m/roll,1000m/roll on the pallet or wooden drum
Delivery:
Within 3-10 working Days once Order Confirmed
Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

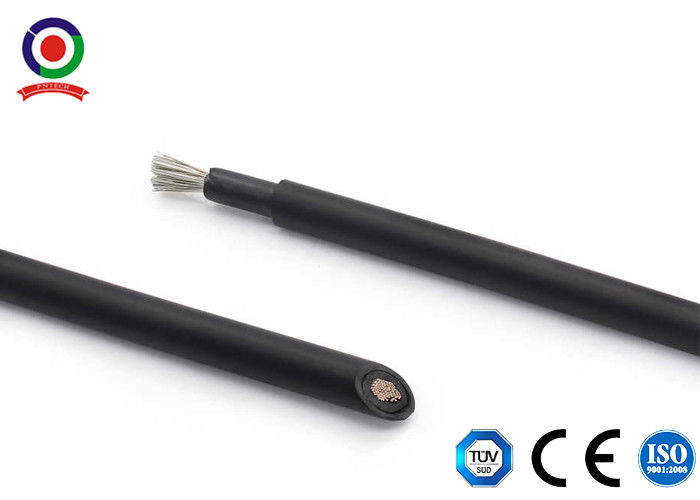

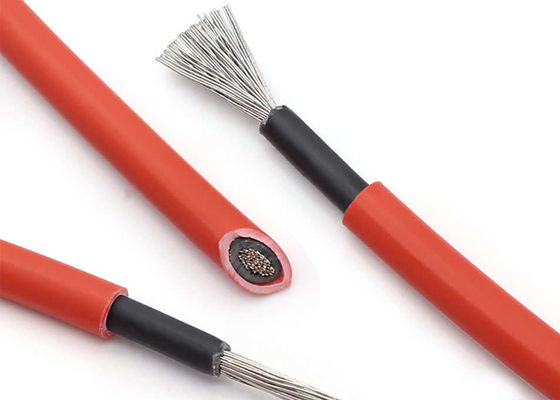

Photo of XLPO solar cable 6mm2
