Waterproof CE T Type 2.5mm Solar Branch Connector

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV005-4T1

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

2.5mm Solar Branch Connector

,

2.5mm t branch connector

,

1500VDC Solar Branch Connector

Product Name:
4 To 1 T Branch Connector
Suitable Cable:
2.5mm 4mm 6mm
Rated Voltage:
1500VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Waterproof
Product Name:
4 To 1 T Branch Connector
Suitable Cable:
2.5mm 4mm 6mm
Rated Voltage:
1500VDC
Protection Degree:
IP67
Rated Current::
30A
Feature:
Waterproof
Description
Waterproof CE T Type 2.5mm Solar Branch Connector

1500V Waterproof high quality Solar CE Approved 4 in 1 T Type Branch Connector



Waterproof CE T Type 2.5mm Solar Branch Connector 0



1. 4 to 1 branch adaptor

2. good price and fast delivery

3. best service tuv approved

4. solar branch connector

5. low power loss

6. solar connector for solar power system

7. all the connection made by double fixed connection

8. with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover with convenient installation, strong commonality

9. to meet the using requirement under bad outdoor condition



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1500V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPO
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

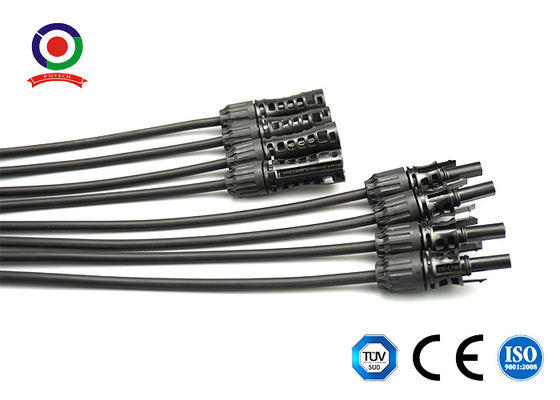

Picture of  4 to 1 Branch connector

Waterproof CE T Type 2.5mm Solar Branch Connector 1

FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
