IP67 Waterproof 1000VDC 30A 1 To 5 T Branch Connector

IP67 Waterproof 1000VDC 30A 1 To 5 T Branch Connector
IP67 Waterproof 1000VDC 30A 1 To 5 T Branch Connector IP67 Waterproof 1000VDC 30A 1 To 5 T Branch Connector

Large Image :  IP67 Waterproof 1000VDC 30A 1 To 5 T Branch Connector

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-T5

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Detailed Product Description
Product Name: 1 To 5 T Branch Connector Cable Size: 2.5 4 6mm2
Rated Voltage: 1000VDC Protection Degree: IP67
Rated Current:: 30A
High Light:

IP67 T Branch Connector

,

1000VDC T Branch Connector

,

30A T Branch Connector

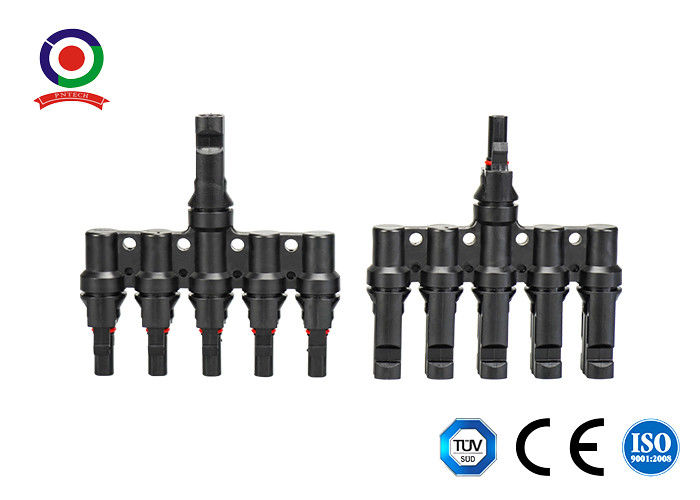

PPO Male and female Gender T branch connector for solar panel Application



Description:



【Solar T branch connectors】1 male to 5 female(M/FFFFF) and 1 female to 5 male(F/MMMMM). It is compatible with solar connectors in 10AWG to 14AWG. Fast and easy parallel wiring solution for solar panels.

【Waterproof & Durable】The waterproof ring on the solar connector is used to isolate water and dust, prevent water ingress corrosion and electric shock. Waterproof grade up to IP67. The built-in lock is stable and safe, will not fall off, and is durable.

【Safe & Stable】PPO insulation material can effectively prevent electric shock, and the internal contacts are made of tinned copper, So it has high current and high voltage load capacity. The high-quality material ensures that it can works stably at a temperature of -40 ℃ ~ + 105 ℃.



Main parameter
Product Name branch connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated


Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
