PPO Male Female Y Branch 3 To 1 Solar Branch Connector

PPO Male Female Y Branch 3 To 1 Solar Branch Connector
PPO Male Female Y Branch 3 To 1 Solar Branch Connector PPO Male Female Y Branch 3 To 1 Solar Branch Connector

Large Image :  PPO Male Female Y Branch 3 To 1 Solar Branch Connector

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-3T1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Detailed Product Description
Product Name: 3 To 1 Y Branch Connector Connector: Male/Female
Rated Voltage: 1000VDC Protection Degree: IP67
Rated Current:: 30A Overvoltage Category: CATIII
High Light:

3 To 1 Solar Branch Connector

,

PPO Solar Branch Connector

,

Male Female Solar Branch Connector

Male/Female Y branch 3 to 1Solar Connectors with Solar Panel Cable



Description:



Conductor pin is tinned Copper: It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load

WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

Compatible with PV cables with different insulation diameters 13-10AWG (2.5m㎡--6m㎡)

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1000V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPE
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

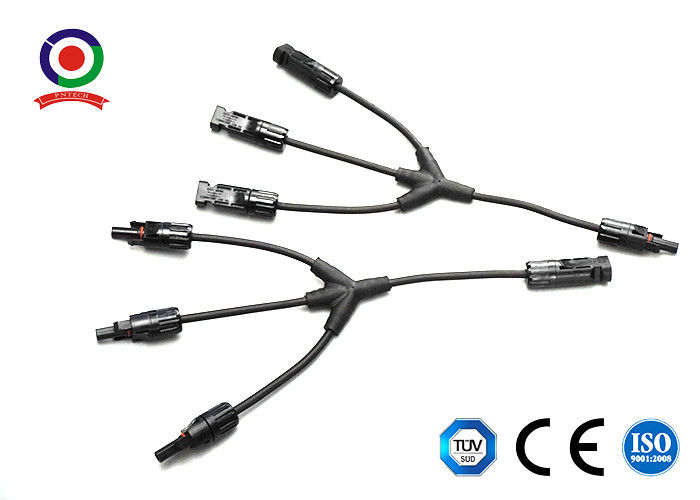

Picture of 3 to 1 Y Branch Connector
